Project Introduction
An intelligent networked relay module with temperature and humidity detection function designed based on the Tuya intelligent networked module; the relay can be controlled to turn off and on by setting the temperature and humidity values in the Tuya APP, and the working status of the relay can also be controlled by the Tuya APP.
GD32F103C8T6 core board reference: https://oshwhub.com/li-chuang-zhi-neng-ying-jian-bu/gd32f103c8t6-fang-an-yan-zheng-ban
Features
1. Internet remote control;
2. Temperature and humidity detection;
3. 4-way relay;
4. Button;
5. USB to TTL;
6. OLED display;
7. Battery charging and discharging circuit.
Hardware selection
1. Tuya intelligent networking module;
2. MCU (GD32F103C8T6);
3. Lithium battery charging chip (TP5400);
PCB simulation

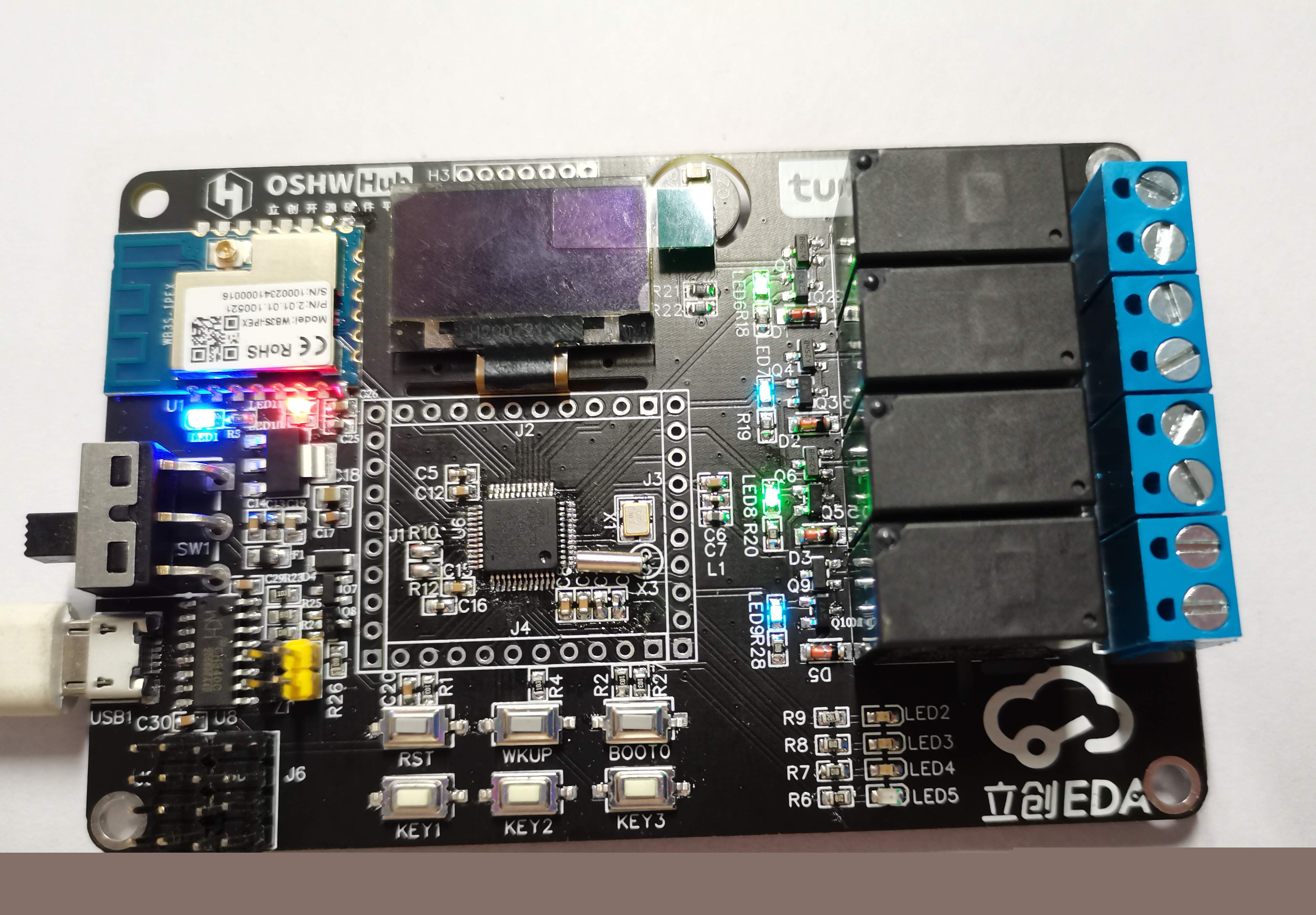

physical effect
