# Fifth Lichuang Electronic Design Competition #STM32F103ZET6 minimum installation system board

1.1 Self-introduction

Male, grade 18 automation major student at Shaanxi University of Science and Technology.

1.2 Briefly introduce the project

This is an installed STM32F103 minimum system board that can perform BOOT selection, SWD simulation, and has a controlled indicator light and power indicator light. Insert it into the mounting hole (a set of headers corresponding to this version), and you can plug and play the STM32 microcontroller. It is helpful for projects in the debugging stage. This universal board can save money on buying STM32 for debugging.

2.1 Describe project details

2.1.1 Project composition

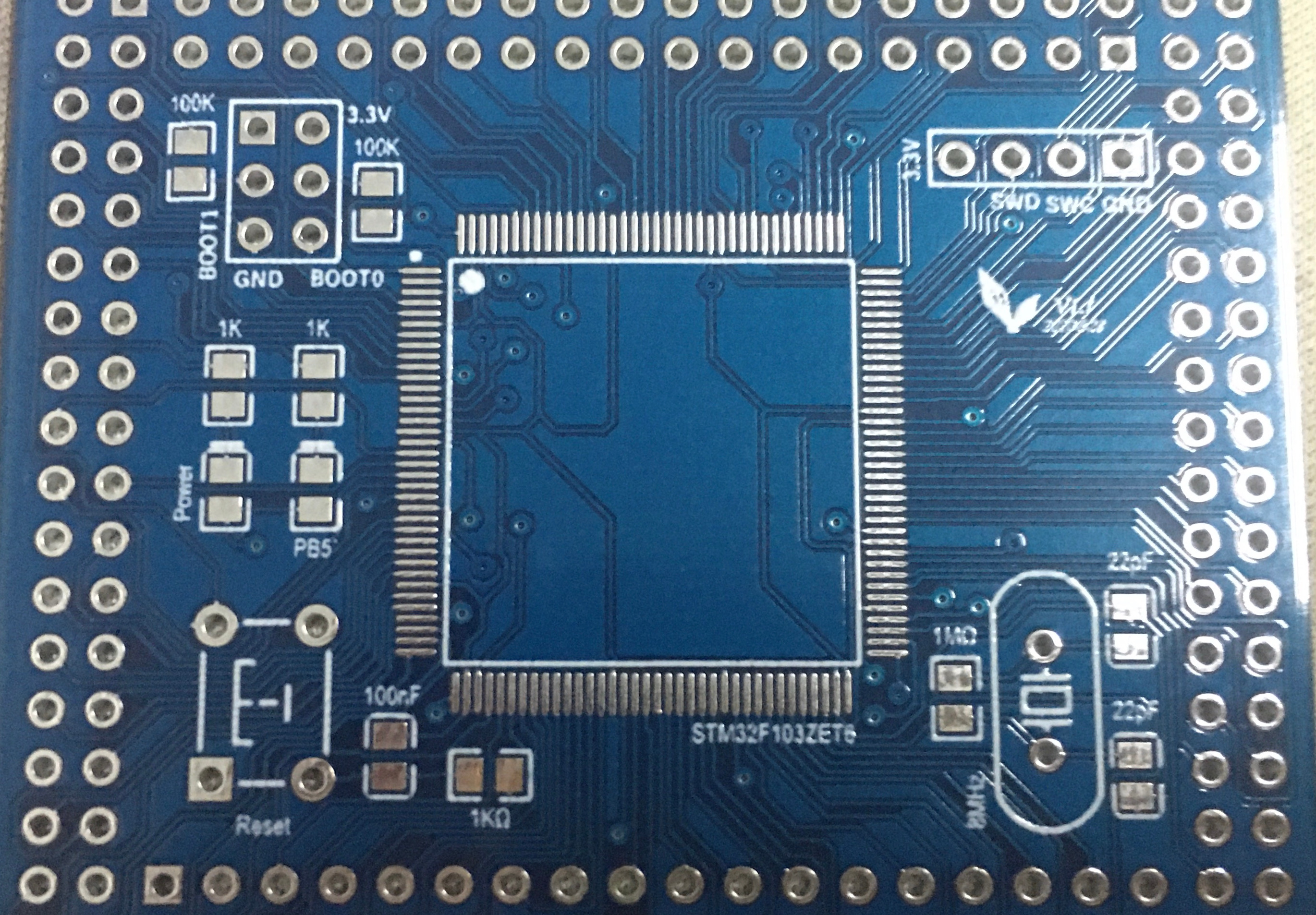

The minimum system board is composed of STM32F103ZET6 microcontroller (other microcontrollers of the same type can be used universally), clock circuit, reset circuit, BOOT selection circuit, power indicator circuit, microcontroller control indicator circuit, and SWD debugging circuit.

2.1.2 Finished product size

The length is approximately 6 cm, the width is approximately 4.7 cm, and the height is approximately 1.5 cm.

2.2 Challenges faced by the project and problems solved

2.2.1 Challenges faced

The biggest challenge is the size of the board. If a pin header is used as a connecting device, no matter how small the board is, it cannot be smaller than the size of the pin header. Basically, this design is close to the limit. In addition, the small size of the board will make wiring difficult. Perhaps changing to a multi-layer board can alleviate this problem.

2.3 Key points involved in the hardware and software parts of the project

2.2.1 Hardware part

The installation-type minimum system board can make up for the shortcomings of chip-type chips that do not have an IC holder, allowing the chip to be easily replaced.

2.2.2 Software part

No software design required

2.4 Project material list display

STM32F103ZET6 X1 0805 chip resistor 100K X2 0805 chip resistor 1K X3 0805 chip resistor 1M X1

2.5 Project image upload

See project cover

2.6 Whether it is released to the public for the first time

yes
