Mao_Larduino_BoB

Overview

Using LGT8F328P QFP48 chip, compatible with Arduino NANO .

Type-C power supply and data transmission use CH340N to reduce the size.

5V power supply, external crystal oscillator short circuit optional.

Use SWD to download. After burning the Bootloader , you can use CH340N to download.

You can use the MaoLGTISP downloader to directly connect and perfectly download the Bootloader and program .

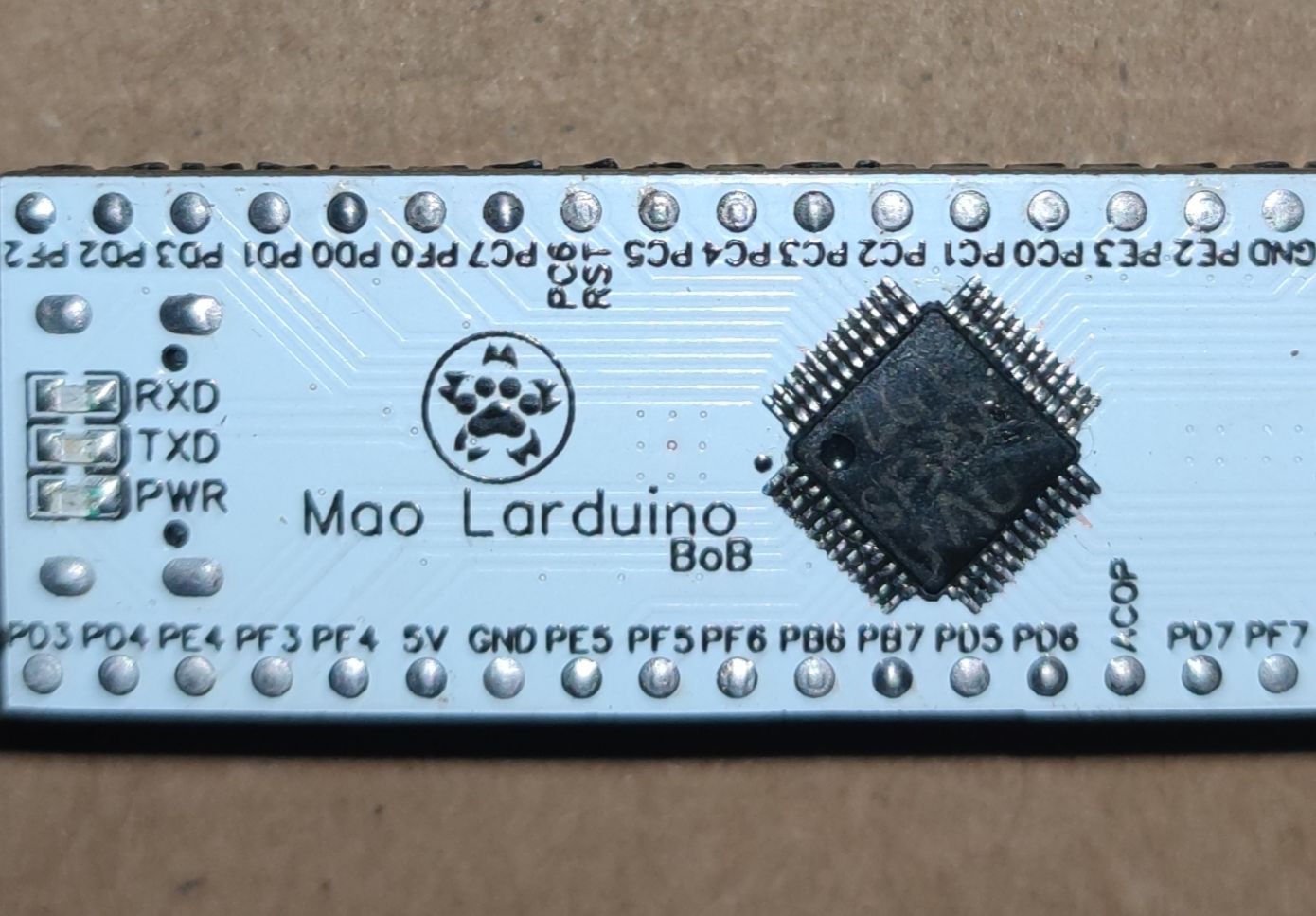

Physical picture:
