Three-terminal adjustable voltage regulator circuit based on LM317

Overview

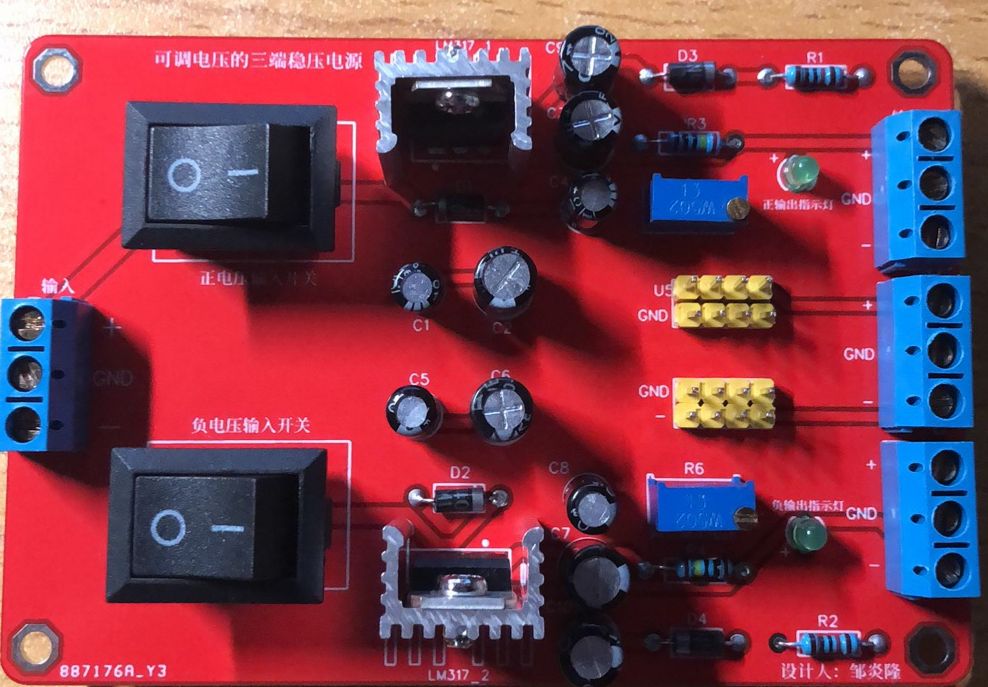

For the circuit of the three-terminal adjustable voltage regulator based on LM317, refer to Figure 2-23 on page 22 of the Guodian competition book presented by Lichuang. After actual testing, the function is normal. When inputting 12V, the voltage output can be adjusted by rotating the potentiometer. It can only decrease but not increase. The maximum output is: input voltage -1.4V (1N4007 diode voltage drop)
