ExpressLRS reception by jyesmith

Overview

ExpressLRS is an open source RC linker for RC applications. It's based on the excellent semtech SX127x/SX1280 hardware along with ESP8285, ESP32 or STM32. ExpressLRS supports a wide range of hardware platforms and both frequency 900MHzand 2.4GHzfrequency options. ExpressLRS uses LoRa modulation along with reduced packet sizes to achieve optimal range and latency compared to current commercial products.

ExpressLRS can operate at various packet rates, the highest 500hzor lowest 25hzdepending on your preference for range or low latency. The 900MHzmaximum 200Hzpacket rate is supported. The A 2.4GHz-Bubble 500Hzis currently being expanded to support future plans with custom openTX binaries 1000Hz.

ExpressLRS can be flashed into existing Frsky R9M hardware (RX and TX), jumper R900 RX, GHOST ATTO/ZEPTO receivers, or a custom PCB if you prefer tinkering. Several manufacturers are preparing to offer official ELRS hardware soon, so stay tuned.

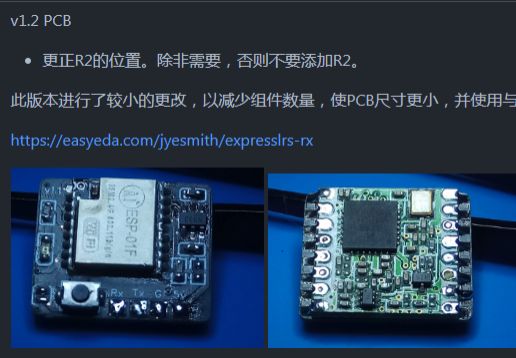

Designer: jyesmith, all rights belong to the original author, original link https://easyeda.com/jyesmith/expresslrs-rx
