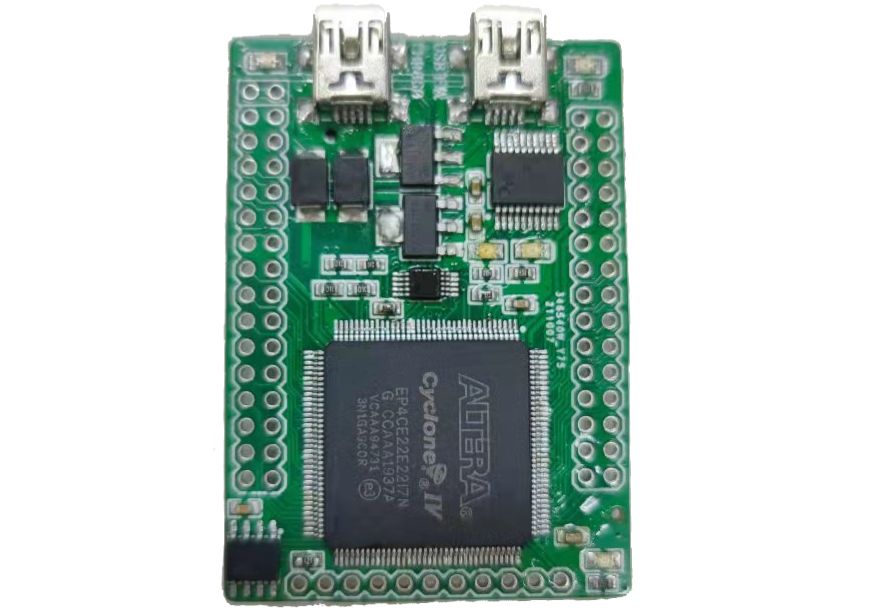

UniPlugS-FPGA

Overview

All manufacturing and usage instructions for this board can be found at : https://github.com/WangXuan95/UniPlug-FPGA

FPGA model: Altera Cyclone IV EP4CE22E22
Integrated USB-blaster (PIC18F14K50 microcontroller solution)
USB-UART
2MB configuration flash memory (EPCS16) for storing FPGA configuration
8MB user flash memory (W25Q64) SPI-flash
Micro-SD card slot
CAN-PHY, used for CAN bus communication
4 user LED lights
Three sets of extended IO: IOA, IOB, IOC
- IOA is 7 common IOs fixed at 3.3V
- IOB can be configured as 18 common IOs, and the level can be configured as 1.8V, 2.5V or 3.3V using jumpers.
- IO C can be configured as 18 ordinary IOs, and the level can be configured as 1.8V, 2.5V or 3.3V using jumpers.
