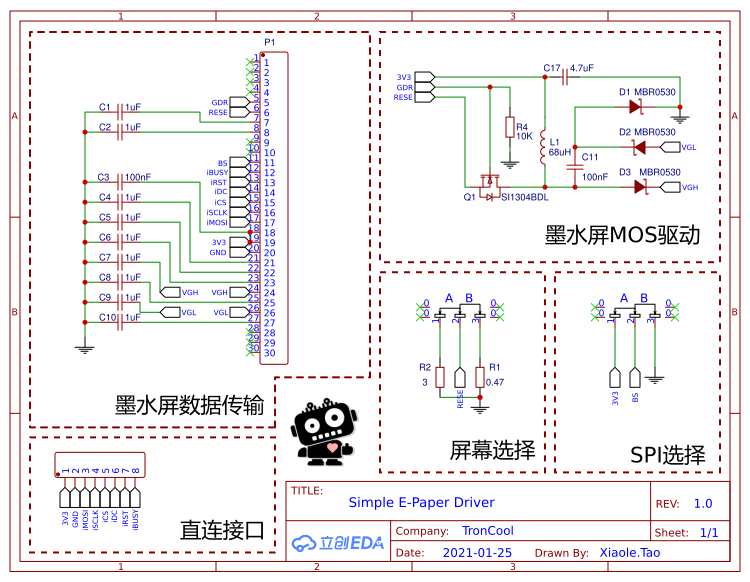

2.13-inch ink screen driver backplane (SMT available)

Overview

Optimized from another project of my own: https://oshwhub.com/Xiaole.Tao/Universal-ePaper-Driver

The size of this project is suitable for the driver board of the 2.13-inch bare screen. You can directly SMT it at JLC, and then attach the bare screen directly to the back of the driver board. It is simple and elegant.
