ESP8266 RGB Board

Overview

feature design

Two-layer design facilitates debugging and maintenance

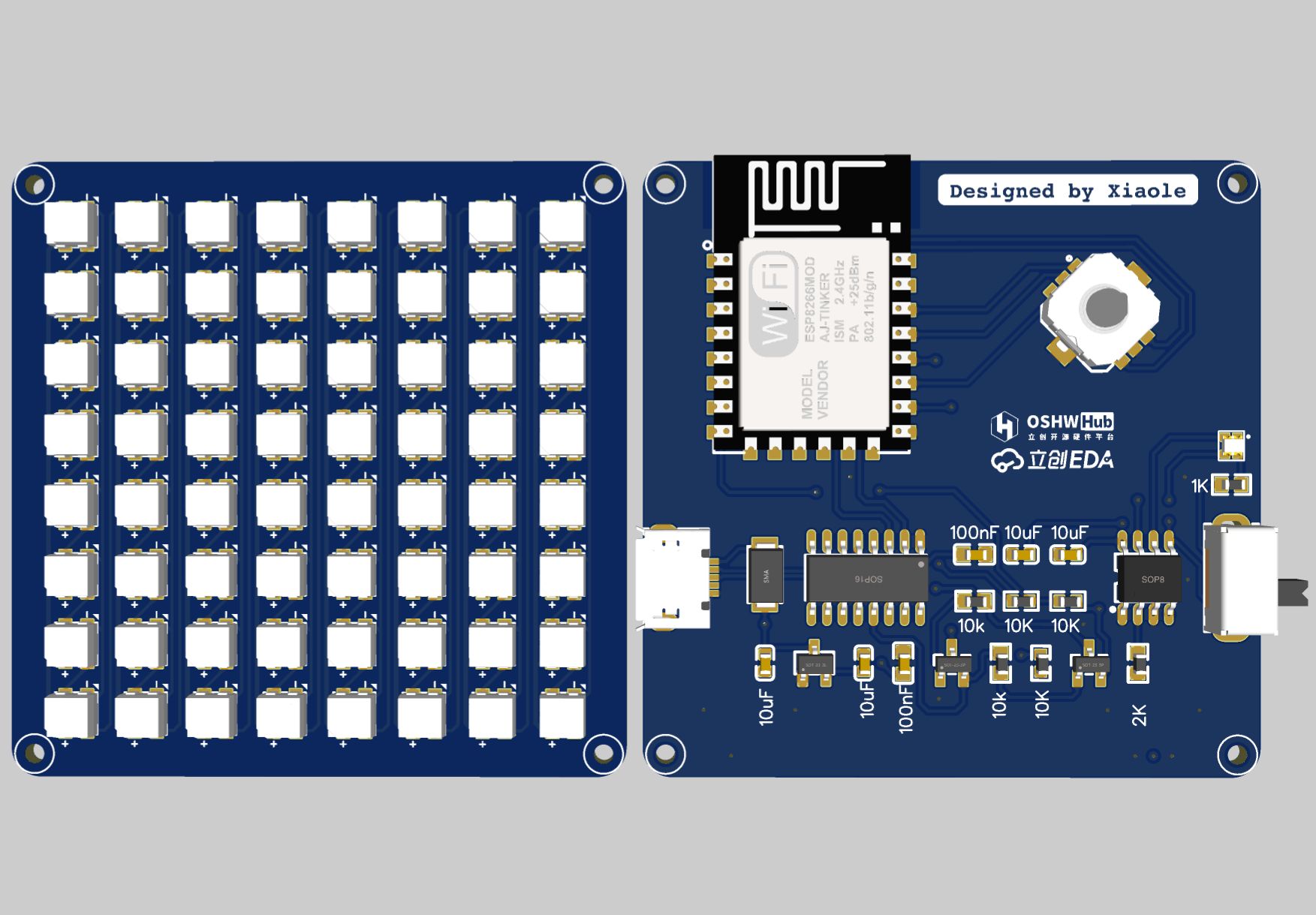

The top layer is an 8x8 LED light source board
The bottom layer is the lithium battery charging and ESP8266 control board
USB port charging and downloading codes
You can soft upgrade the control program through the Wifi that comes with 8266
Can be used as a colored light source
software design
Built-in breathing effects
Rainbow special effects
Rhythm random color effects
The software has not been written yet, the open source URL will be released later.
The 3D model will also be open source after passing the debugging.

Product iteration, 5x5 is upgraded to 8x8 array, two-and-a-half-layer design is updated to double-layer design, and writer programming is updated to USB port programming. Prototype production has not been done yet, and the progress is slow, but I have to fill in the pitfalls.
