(Verified) Smart infrared remote control

Overview

Project version: V1.0

Project description:

This is a development-free multi-functional infrared remote control on the Tuya smart platform. It can set air-conditioning remote control, remote switch and self-learning infrared functions. One module integrates three parts, making it very convenient to switch at any time.

Hardware introduction:

1. Powered by 6Pins Type-C

2. Use SS36 diodes to prevent reverse connection

3. Using AMS1117-3.3 LOD voltage regulator chip

4.WiFi & Bluetooth module uses Tuya WR3E

5. Built-in night light, which can be turned on and off at scheduled times.

Software introduction:

1. Development-free version, Tuya Cloud provides code and services, no need to set up by yourself

Project pictures:

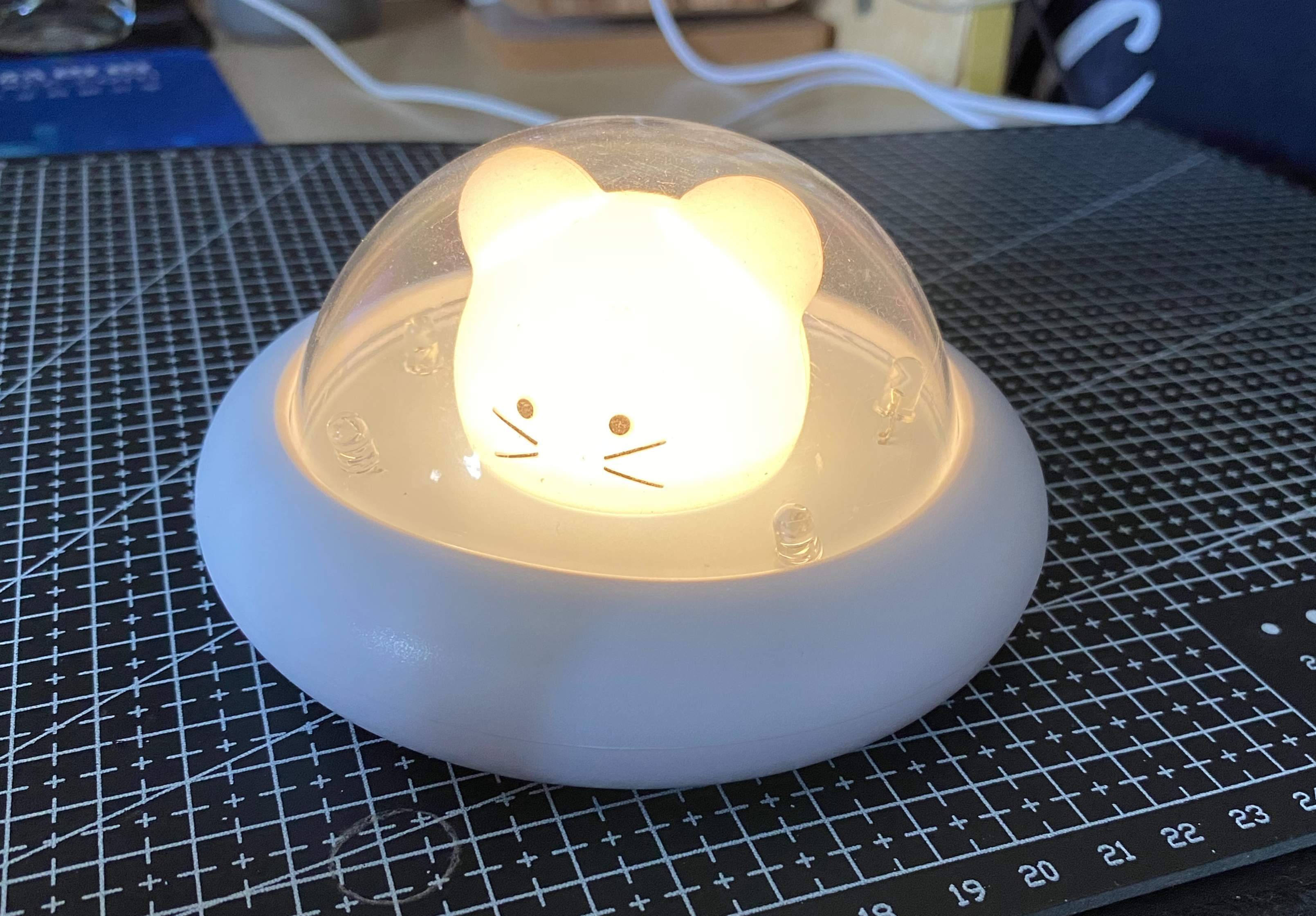

The outer casing was purchased from a certain night light and modified into it. It is very simple.

65*65 transparent square box
