IoT smart RGB lights

Overview

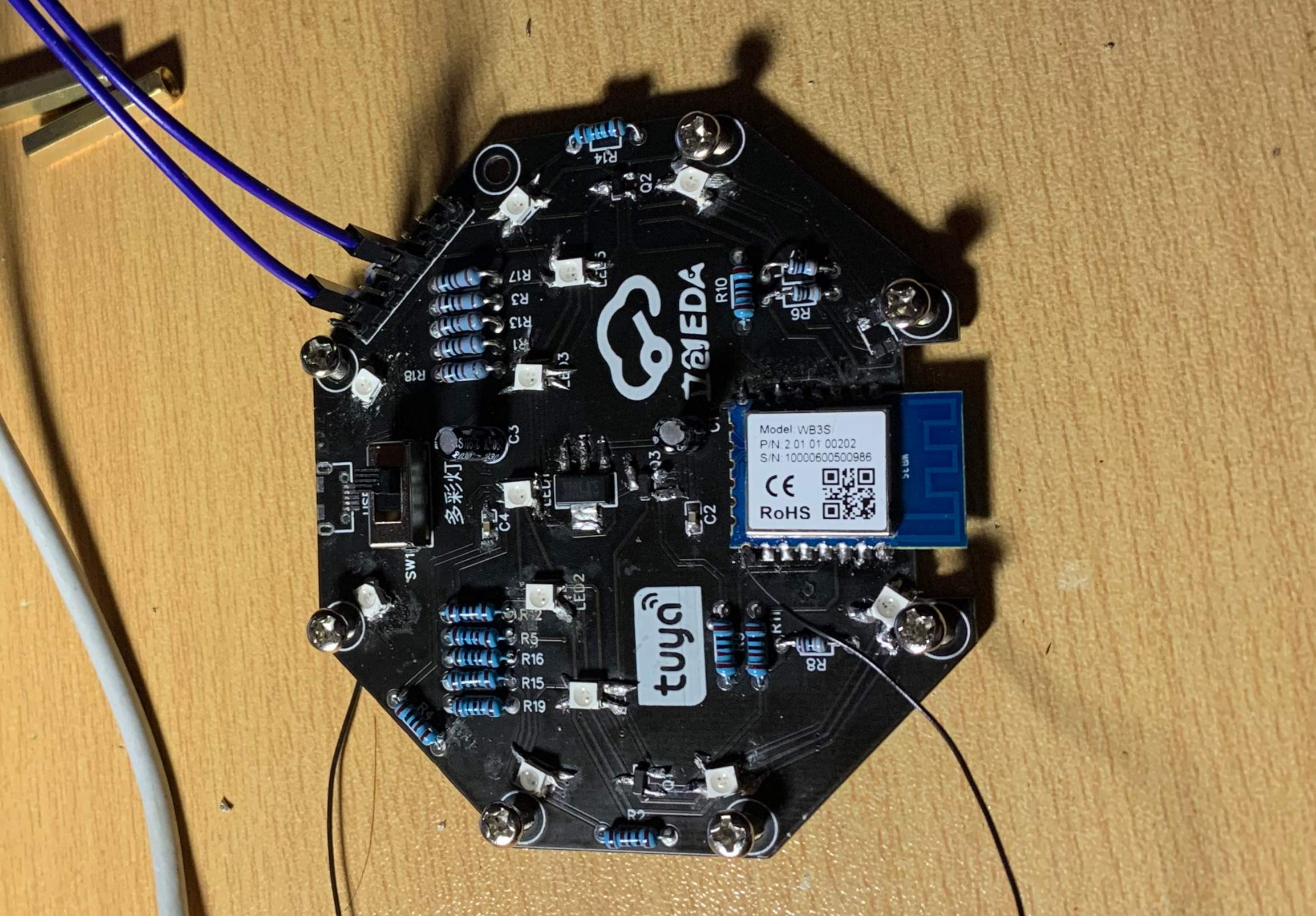

By adding peripheral circuits to the module WB3S, the effect of intelligent colorful lights can be achieved. QQ picture 20201207074034.png For voltage conversion, the 5V voltage is converted to 3.3V through the voltage regulator U1. The USB port is the external power supply, and the two sets of capacitors play a filtering role. QQ picture 20201207074427.png QQ picture 20201207074431.png Add peripheral circuits to the WB3S module to output PWM-R PWM-G PWM-B and connect it to the RGB lamp parallel circuit. Here RGB is a common anode circuit, and the tail end is connected to the output end of the MOS tube.
