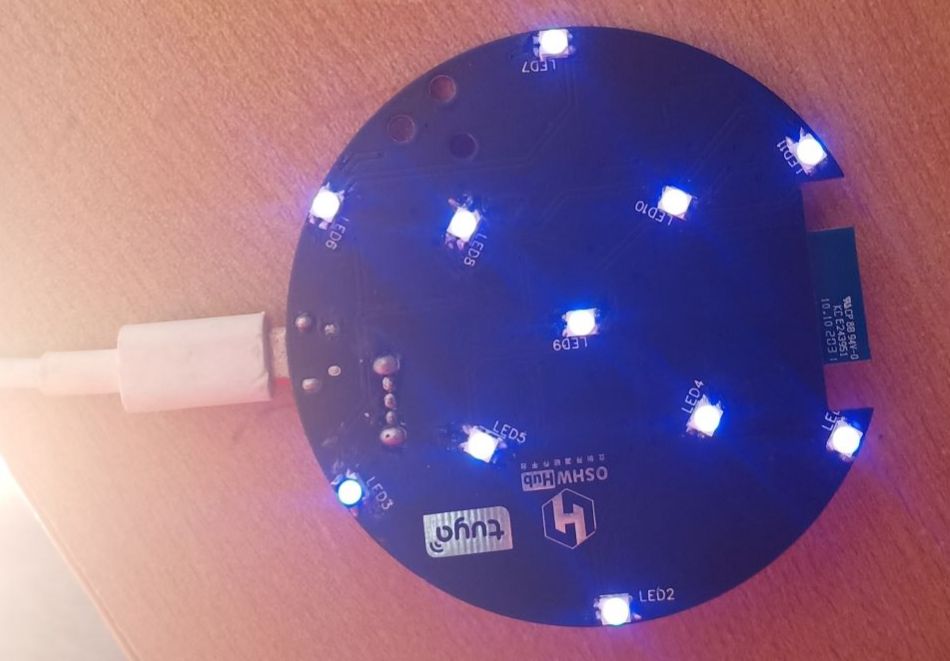

Simple and unpretentious RGB lanterns, with one, four or six lamp beads distributed in a three-layer array. A lamp bead was broken due to poor soldering skills, and it was replaced later (the model is slightly different). The lamp bead was placed on the back of the PCB board, and other components were placed on the front, which has a certain aesthetics. Three triangular through holes are drawn on the PCB for fixing with the bracket and can be used as a desktop night light.
