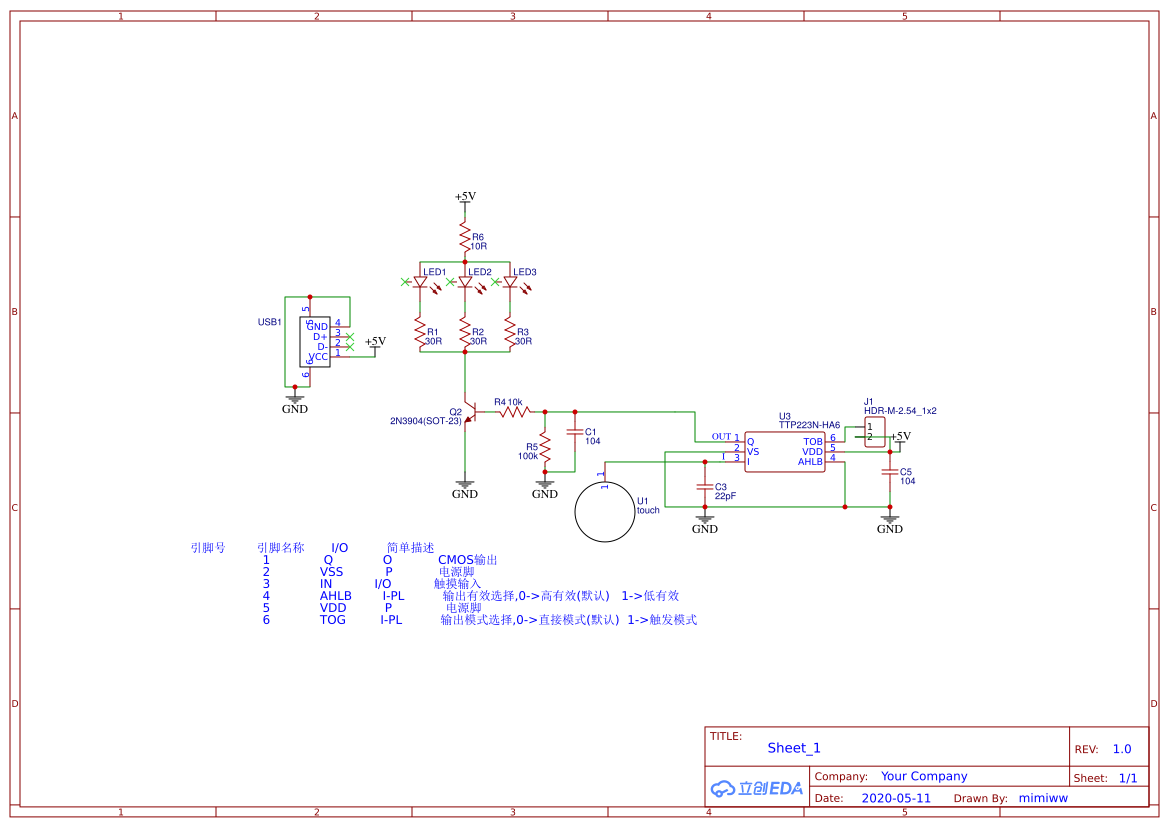

Imitating the Lichuang open source USB small lamp, because the middle pad of the LED I bought was positive, it caused a short circuit, so I redrawn the PCB file and added a jumper terminal in the mode setting to facilitate changing the mode.
