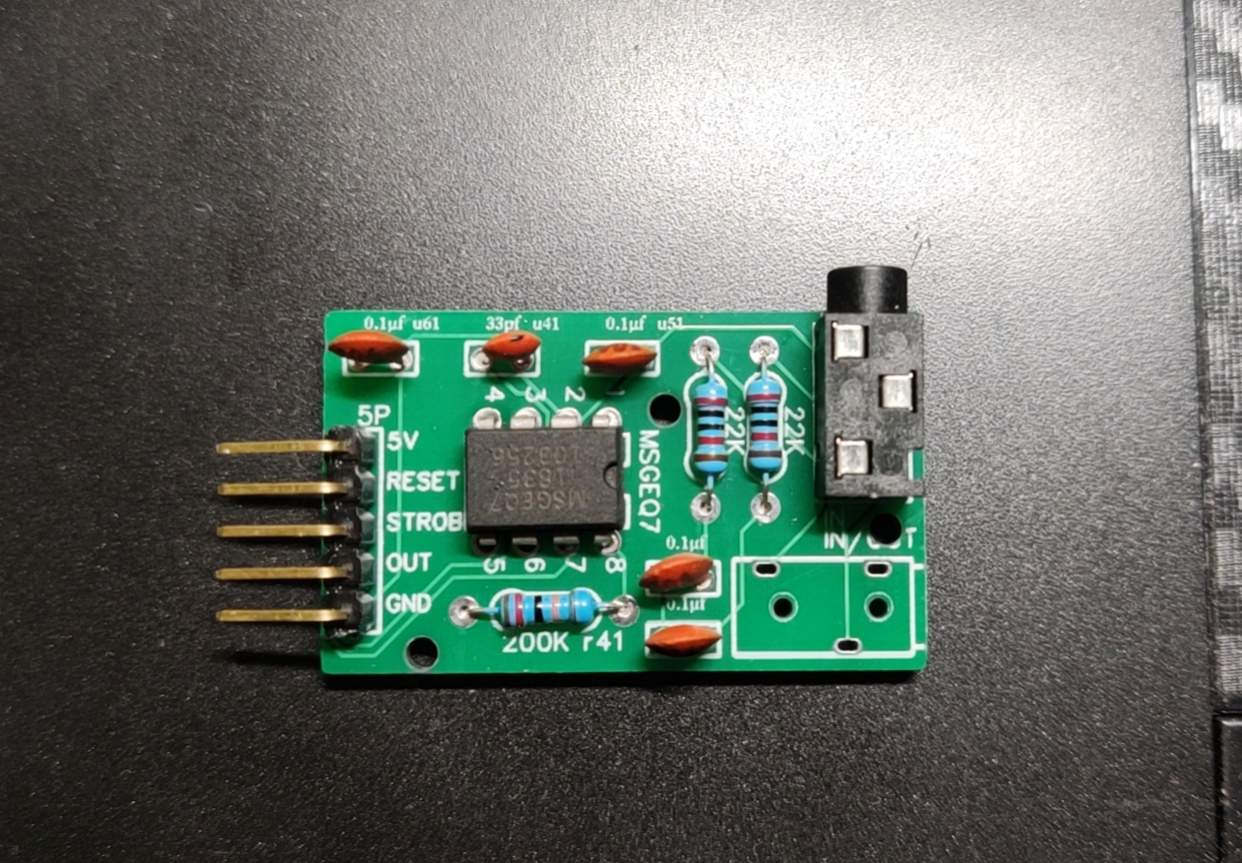

The board has been printed and verified, and the Arduino code and original schematic will be uploaded later.
There are two 3.5mm interfaces, either one can be used as input, and the other can be used as 3.5mm one-to-two output for speakers.
The sizes of the several capacitors do not need to be precise and can vary in size.
The same module on a certain treasure costs 48. . .
