PlainDAQ: Simple open source DAQ module for Raspberry Pi Pico (schematic, source code, etc.)

Overview

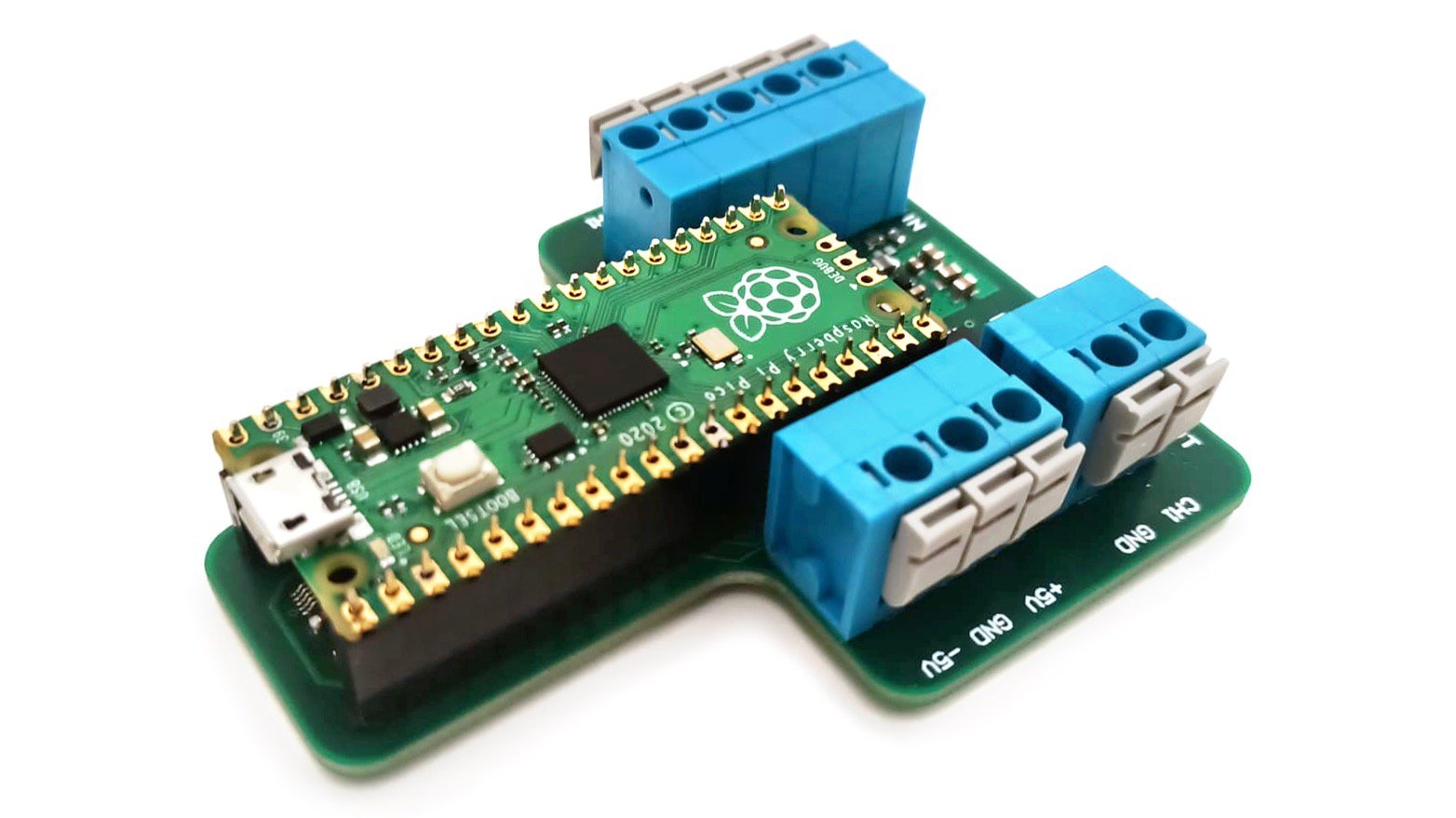

PlainDAQ is a simple, useful tool that adds basic precision analog functionality to your Raspberry Pi Pico board. It features a precision, low noise, low drift 12-bit 500k sps/s ADC. To match the ADC and maintain its noise and accuracy, all analog inputs are buffered and the ADC is driven by a high speed/low noise fully differential amplifier. It also has a 10-bit DAC that helps create analog outputs and waveforms.

PlainDAQ generates ±5 V voltages to provide bipolar supplies that are often difficult to generate. To support all these features, PlainDAQ includes a stable voltage reference with 20 ppm/°C drift. Each plainDAQ is calibrated using the DMM7510 before shipment and can be calibrated using appropriate equipment with the help of an onboard EEPROM for storing calibration data.

A DAQ device wouldn't be complete without some kind of wireless communication, so we also offer a BLE option for regular DAQ devices.

Design Files

PlainDAQ
