USB Armory Mk II: Small Open Source USB Computer for Security Applications

Overview

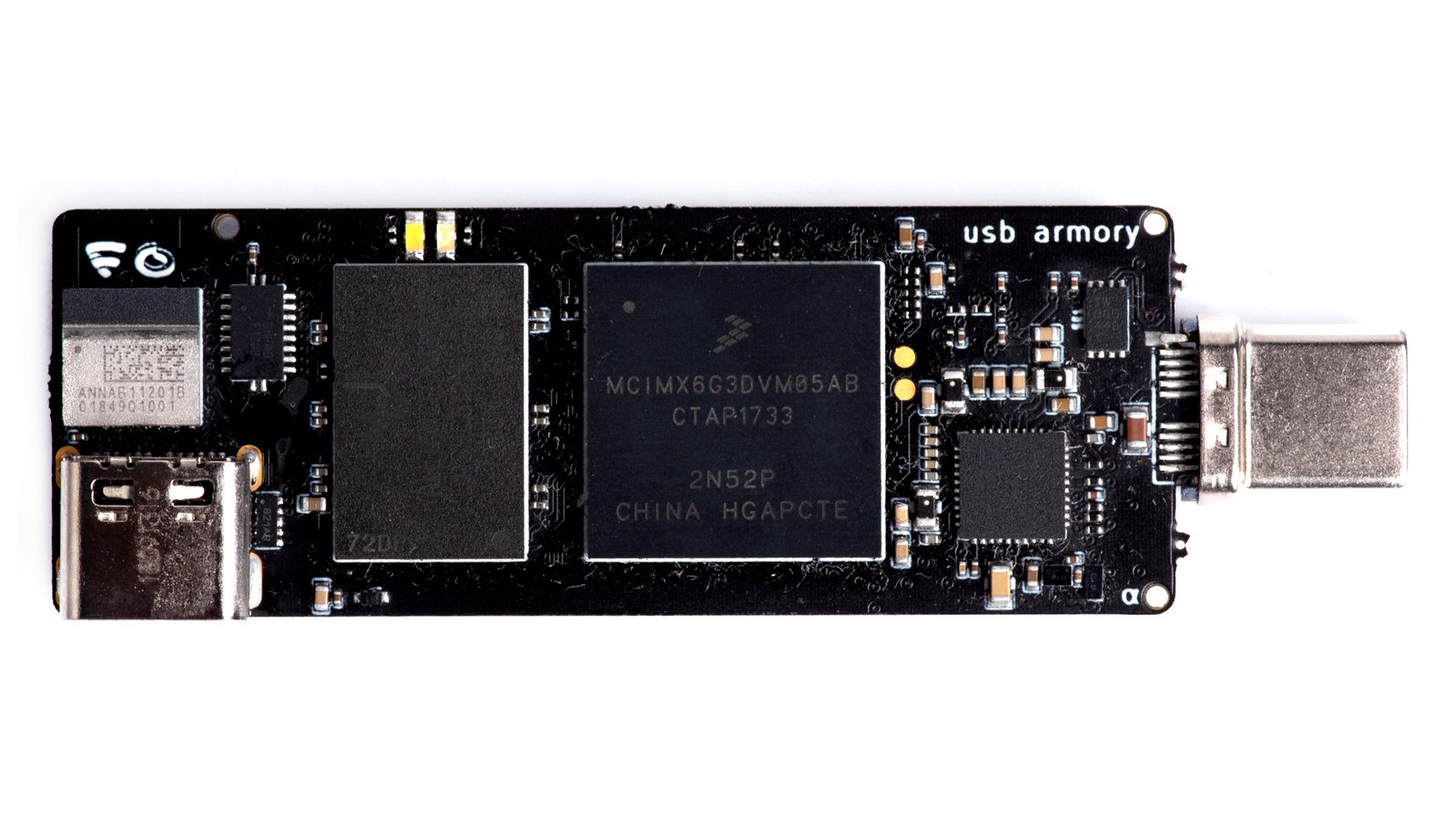

The USB armory Mk II is a full-featured computer (900 MHz ARM® processor, 512 MB RAM, Bluetooth, USB-C) in a small form factor, designed from the ground up with information security applications in mind.

hardware

SoC: NXP i.MX6ULZ ARM® Cortex™-A7 900 MHz
Memory: 512 MB DDR3
Storage: Internal 16 GB eMMC + external microSD
Bluetooth module: u-blox ANNA-B112 BLE
USB-C Port: DRP (Dual Action Power Supply) socket + UFP (Upstream Port) plug, USB 2.0 only (no video support)
LED: Two
sliding switches: for selecting boot mode between eMMC and microSD
External Secure Element: Microchip ATECC608A + NXP A71CH
Physical Dimensions: 66 mm x 19 mm x 8 mm (without case, includes USB-C connector)
Case: included with all device protectors

Design Files

usbarmory-master
