Freedom expansion board for MPC17529

FRDM-17529EVB

Overview

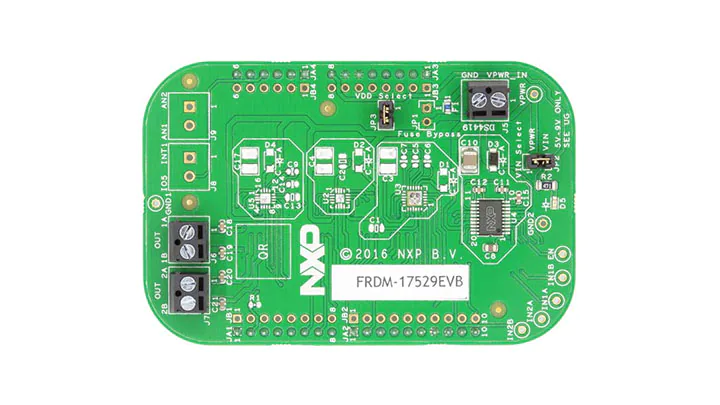

The Freedom evaluation board uses the MPC17529 two-channel H-bridge driver, which can drive one stepper motor or two brushed DC motors.

Independent control of each H-bridge through MCU interface
With built-in shoot-through current protection and under-voltage shutdown function
Efficiently drive multiple types of low-power micromotors
Save design time
Reduce system costs
Save board space—enable compact, low-profile designs
Reduce parts count
^{Processor Expert®} components for low-voltage H-bridge products enable rapid development of embedded applications.

Design Files

Printed circuit board and circuit diagram: Gerber files for the FRDM-17529EVB
