Freedom hardware for MC24XS4 series

FRDM-24XSMBEVB

Overview

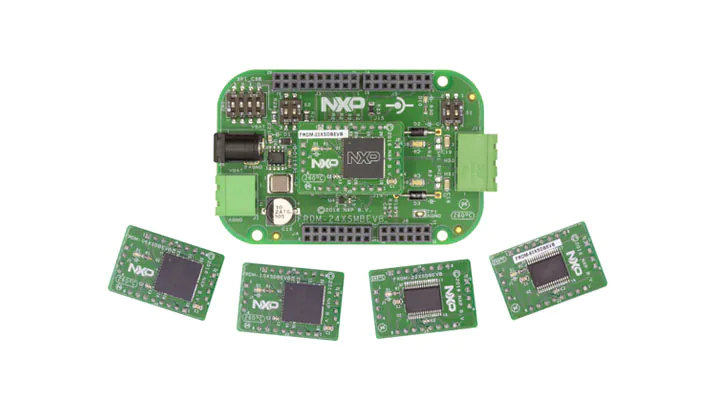

The NXP Freedom Board FRDM-24XSMBEVB is a hardware tool for the evaluation and development of different eXtreme switches (consisting of the 24V series). This motherboard can be associated with 5 different devices of this series, thanks to its shield connectors. These compatible devices are a 24V family of dual high-side devices with highly flexible integrated control and extensive protection and diagnostic features. The board is easy to use thanks to the following interfaces:

FRDM-KL25Z and its SPIGEN graphical user interface
Freedom KL25z, KV10Z, K64F with Processor Expert component
