S12VRP Evaluation Board

DEVKIT-S12VRP

Overview

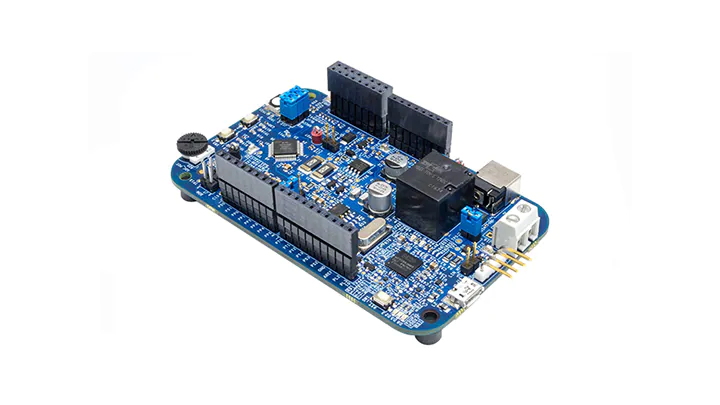

DEVKIT-S12VRP is an automotive-grade 16-bit MCU that uses the S12VRP microcontroller and is suitable for applications based on motor control relays. S12VRP integrates S12 CPU, LIN physical interface, current sense amplifier, and 5V voltage regulator system, and provides a microcontroller and low-side driver for controlling the repeater.

DEVKIT-S12VRP is an ultra-low-cost development platform that includes relays, switch buttons, RGB LEDs, current sense amplifier circuitry, access to all pins, and on-board OSBDM.

Design Files

Printed Circuit Board and Circuit Diagram: DEVKIT-S12VRP Schematic
