Freedom expansion board for brushed DC motor driver MC34931

FRDM-34931-EVB

Overview

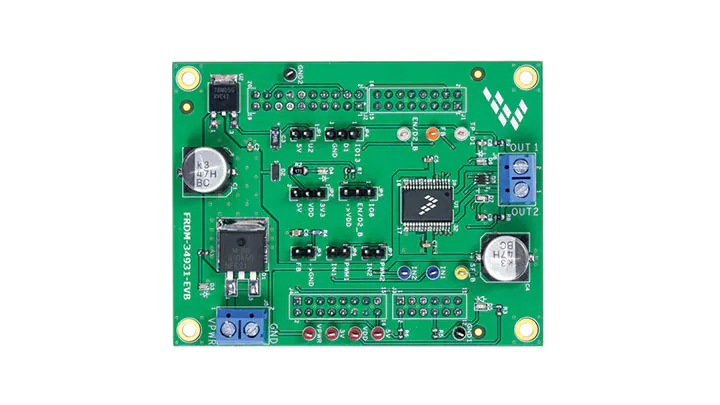

The FRDM-34931-EVB expansion board is a simple and easy-to-use board that allows users to try out all the features of the MC34931EK H-bridge circuit, driving brushed DC motors with voltages ranging from 5-36V and currents up to 5 A. Parallel inputs in the FRDM-34931-EVB can be easily controlled using 3.0/5.0V compatible lab equipment, any MCU's general IO, or the FRDM-KL25Z board connected to a PC's USB port.

The Graphical User Interface (GUI) program, when used with the FRDM-KL25Z, provides a user interface that connects to the USB in the FRDM-KL25Z board, allowing the user to send commands to the IC.

Design Files

Printed Circuit Board bill of materials and design files: FRDM-34931-EVB - Printed Circuit Board bill of materials and design files

Documentation
