OM7865: BGA3018 Demonstration Board, 40 MHz to 2600 MHz Broadband Amplifier Application

Overview

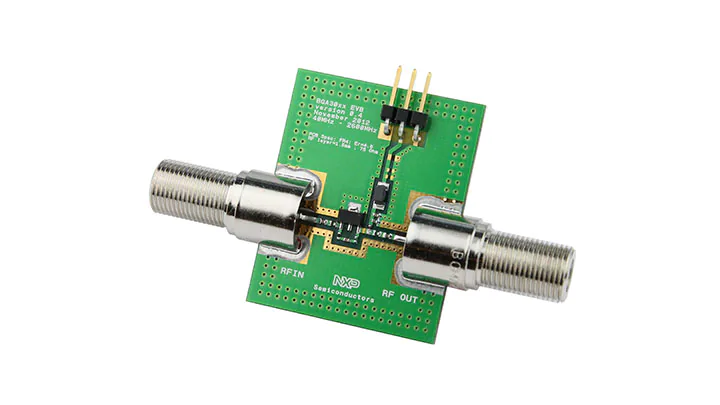

The BGA3018 Cable TV Signal Amplifier Kit simplifies the evaluation of the BGA3018 wideband amplifier. It contains an RF circuit board matched to 75 Ohm, 40 MHz to 2.6 GHz with F connectors. The board operates with voltages between 5 V and 8 V. The kit also provides BGA3018 prototype examples, device models and product documentation.
Target Applications

Broadband amplifiers for CATV combining satellite frequencies from 40 MHz to 2600 MHz

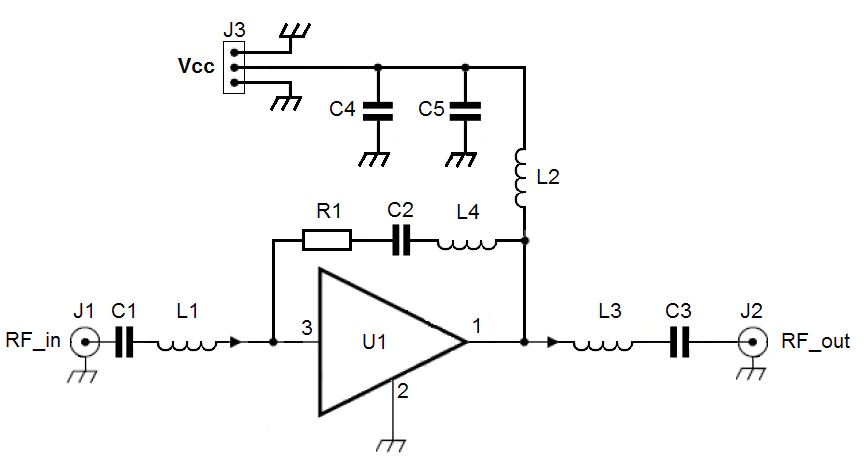

Blockdiagram

Design Files

Board layout files

Documentation

BGA3018 - 5 MHz to 300 MHz 18 dB reverse amplifier application
