MPC56xx Shield expansion board

XPC56xxMB2

Overview

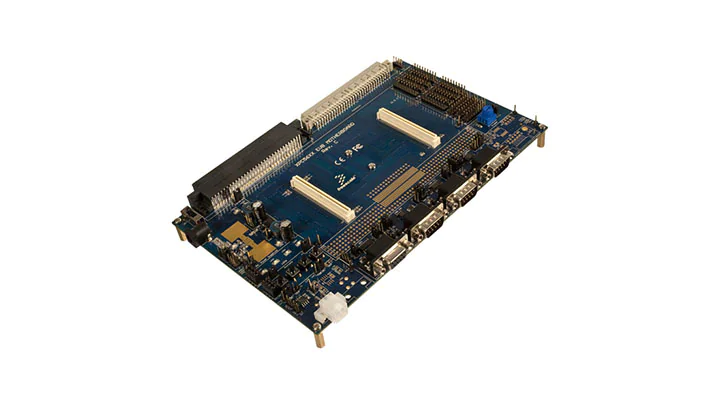

The XPC56xxMB2 motherboard is an evaluation system supporting NXP MPC56xx MPUs ^.

The complete system consists of an XPC56xxMB2 motherboard and an XPC56xxADPT micro module (not included) that plugs into the motherboard.
A variety of micro-modules are available to evaluate various devices in the MPC56xx family of MCUs.
The evaluation system (including motherboard and micro module) gives the user complete access to the CPU, including all I/O signals of the CPU and motherboard peripherals (e.g. CAN, SCI, LIN).

Design Files

Documentation
