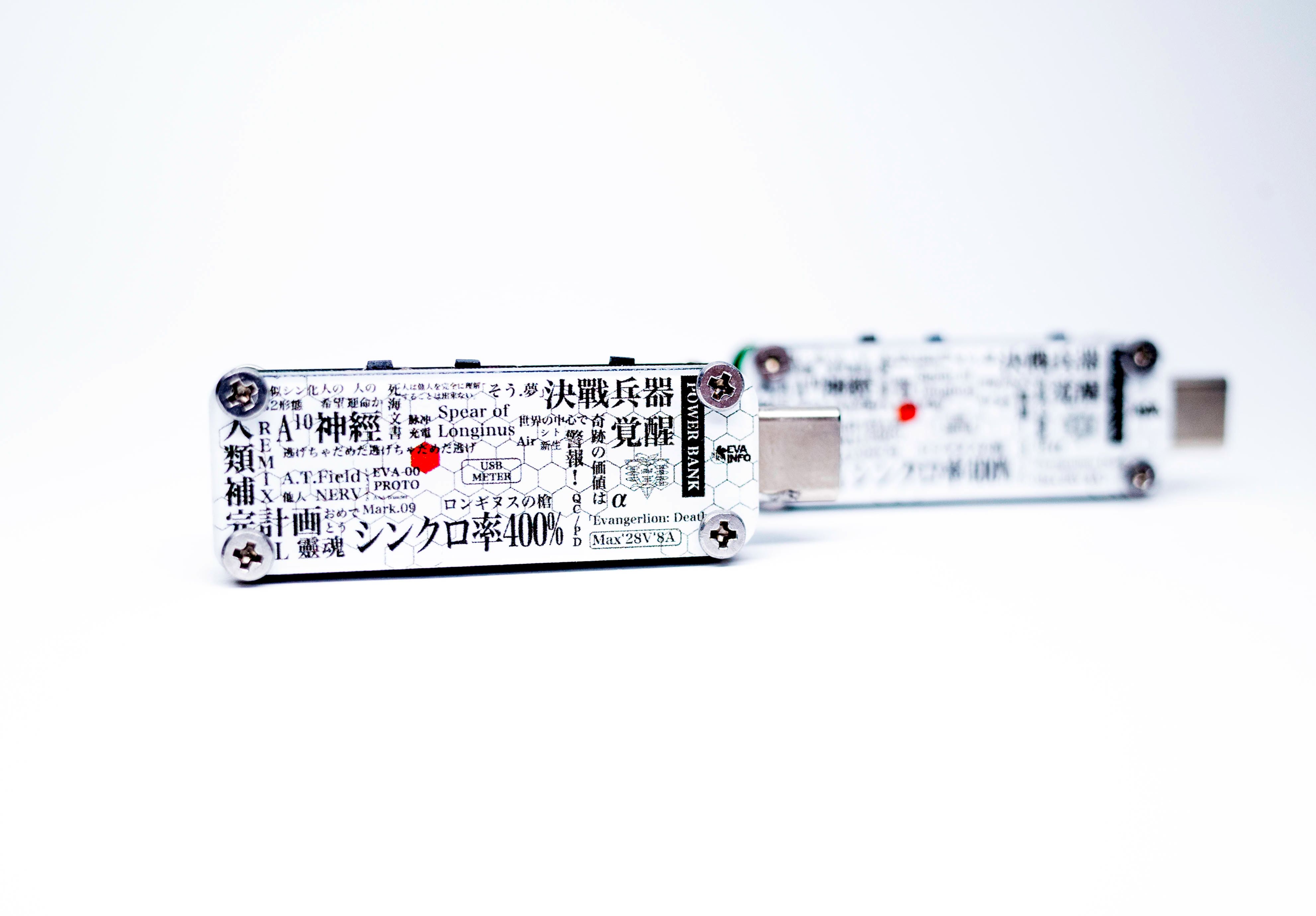

USB current voltage meter board

1. This panel is only suitable for https://oshwhub.com/qaxslk/dai-PD-QCyou-pian-jian-ce-yi-ji-#P4  . If you need to print other pages, please modify the source file yourself.

PCB to panel frame steps:

Applicable to both professional and standard versions.

1Open the PCB file that needs to be converted and click to export the DXF file

Select to export the plate frame layer, multi-layer, hole layer, and drilling layer (the following is the professional version export)

Create a new panel file, import DXF, delete unnecessary layers, fill in the missing layers, and be sure to combine the borders into a whole when exporting.

Just place pictures according to your needs.

Printing steps:

At present, the upper limit of the file size automatically uploaded by the test panel is about 15M. When placing an order above 15M, a pop-up window will pop up to ask customer service for resolution.

Click the order button on the top panel to enter the order page with one click.

Choose the printing process you need

If the file is too large, the project needs to be exported locally and sent to customer service for processing.

The above is the whole process of panel printing.
