aerobotics

U disk version BADUSB

Overview

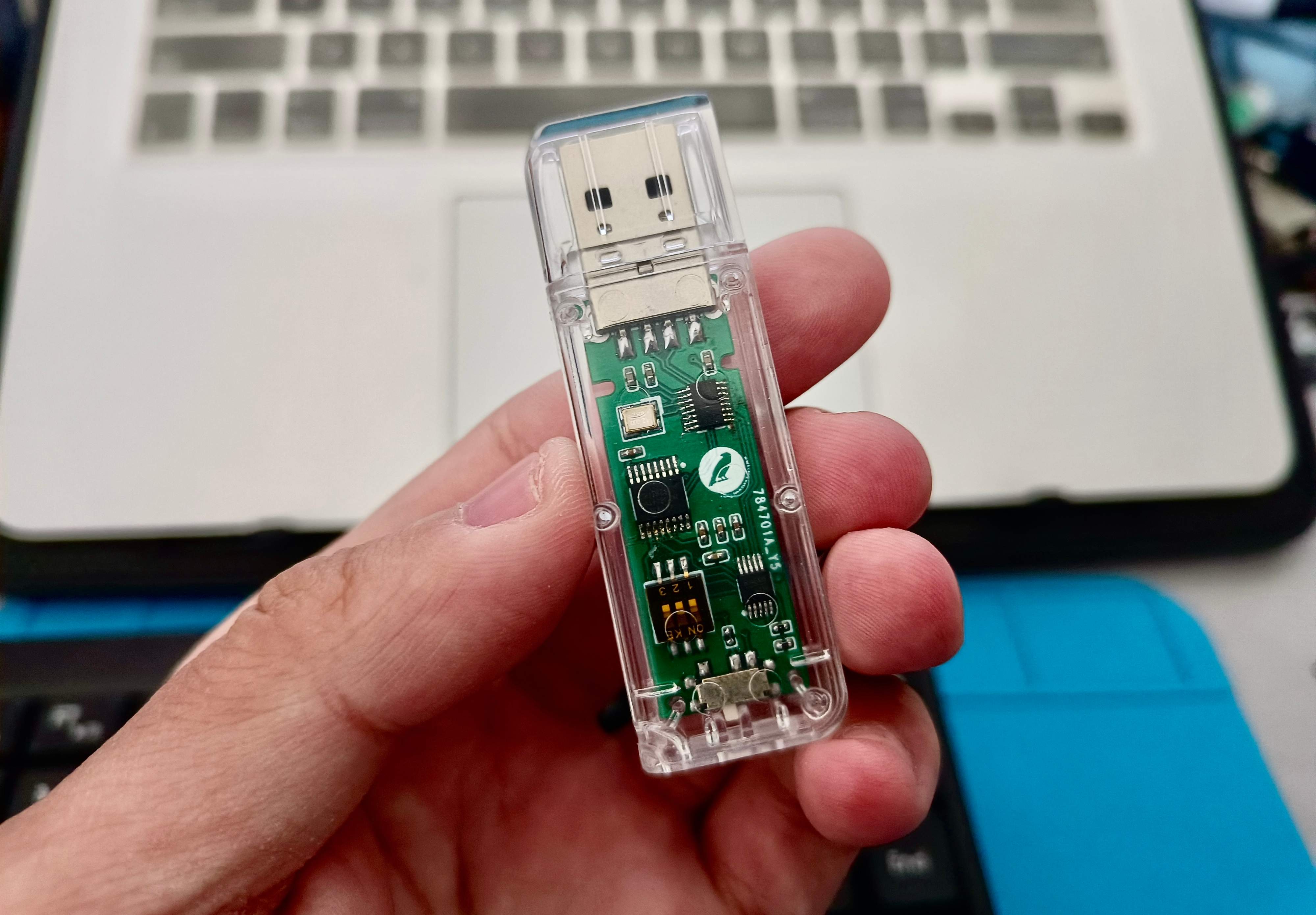

BADUSB device with card reader function

The actual product has been tested and passed. The demonstration video can be viewed at BV17F411E784 on station b . If you are interested, you can support it with one click and three consecutive clicks. Welcome to follow the UP owner, and we will continue to release interesting open source projects in the future.

Notice

When making samples, pay attention to the PCB thickness of 0.8mm.

The shell is a public version with a write-protect switch.

There seems to be nothing else to say. If you have any questions during the production process, please leave a message: )
