PACxxxxS12-series power supply PCI adapter board

Overview

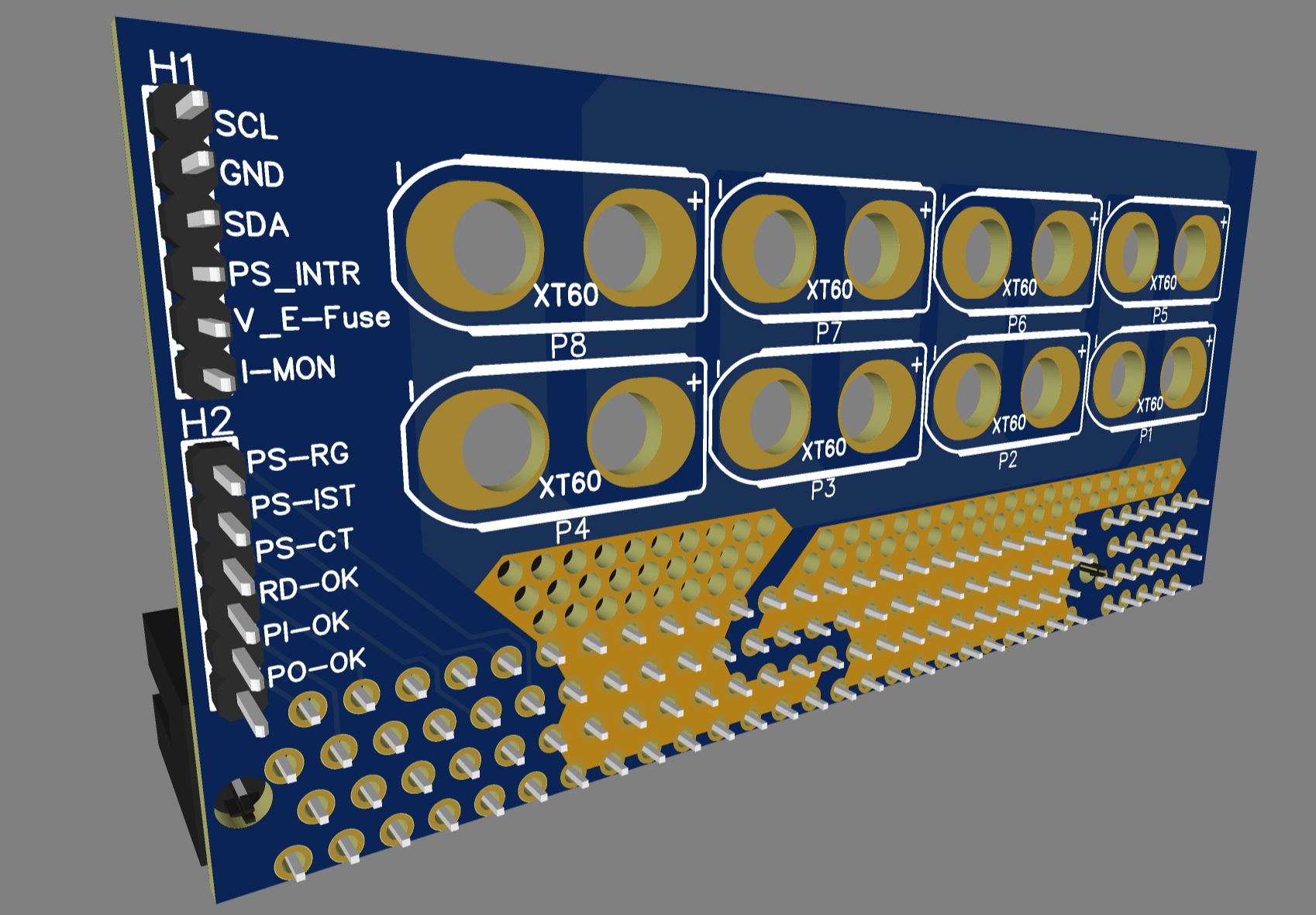

Since the original Amphenol 28P+20S connector of the PACxxxxS12-series is expensive and hard to buy, I used a PCI interface instead to make it work. The board has a large area of copper exposed for excessive current to facilitate tin coating. V4 , including the previous version, is wrong. Yes , I have already tested the V5 myself and it is ready for use. However, the welding and tin depositing depends on your own skills. I will continue to update it.
