WiFi-USB-DAPLink

Overview

The two-in-one debugger based on ESP32-S3 supports USB and WiFi connection modes, is compatible with the DAPLink debugger protocol, and can directly replace the traditional DAP debugger. When connected via WiFi, it also simulates a DAP debugger, which is transparent to the user and can be used without changing the configuration. WiFI connection is not limited by distance, and can even be debugged in remote locations and shared by multiple people.

First of all, I would like to thank Lichuang for launching this activity

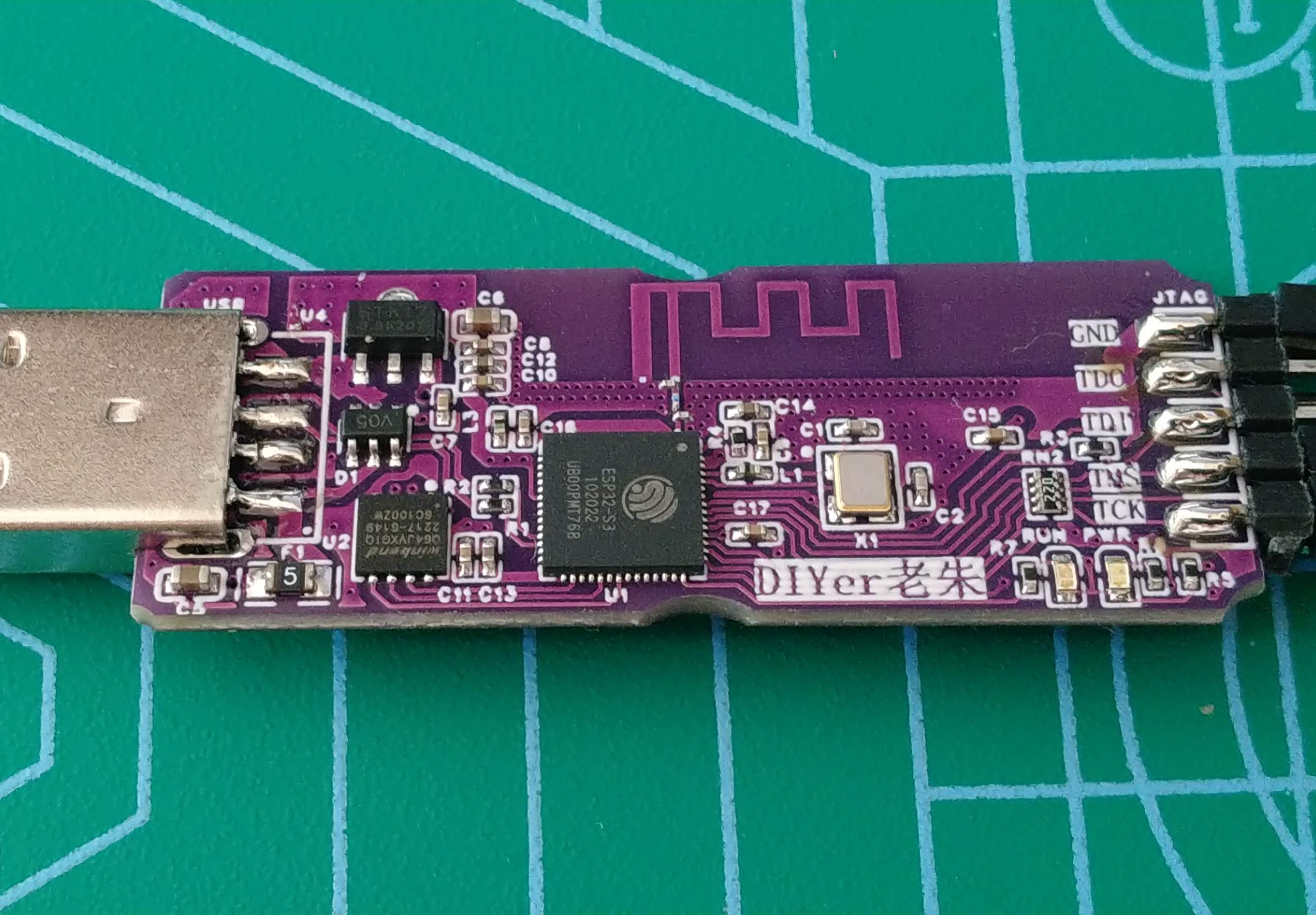

Show me the effect of Lichuang SMT patch

Production process video:

USB+WiFi multi-function debugger production (1)

Production of USB+WiFi multi-function debugger (2) Development environment construction

Design Files
