Vapor Phase One: A simple welding machine for hobbyists and engineers (source code, design files, etc.)

Overview

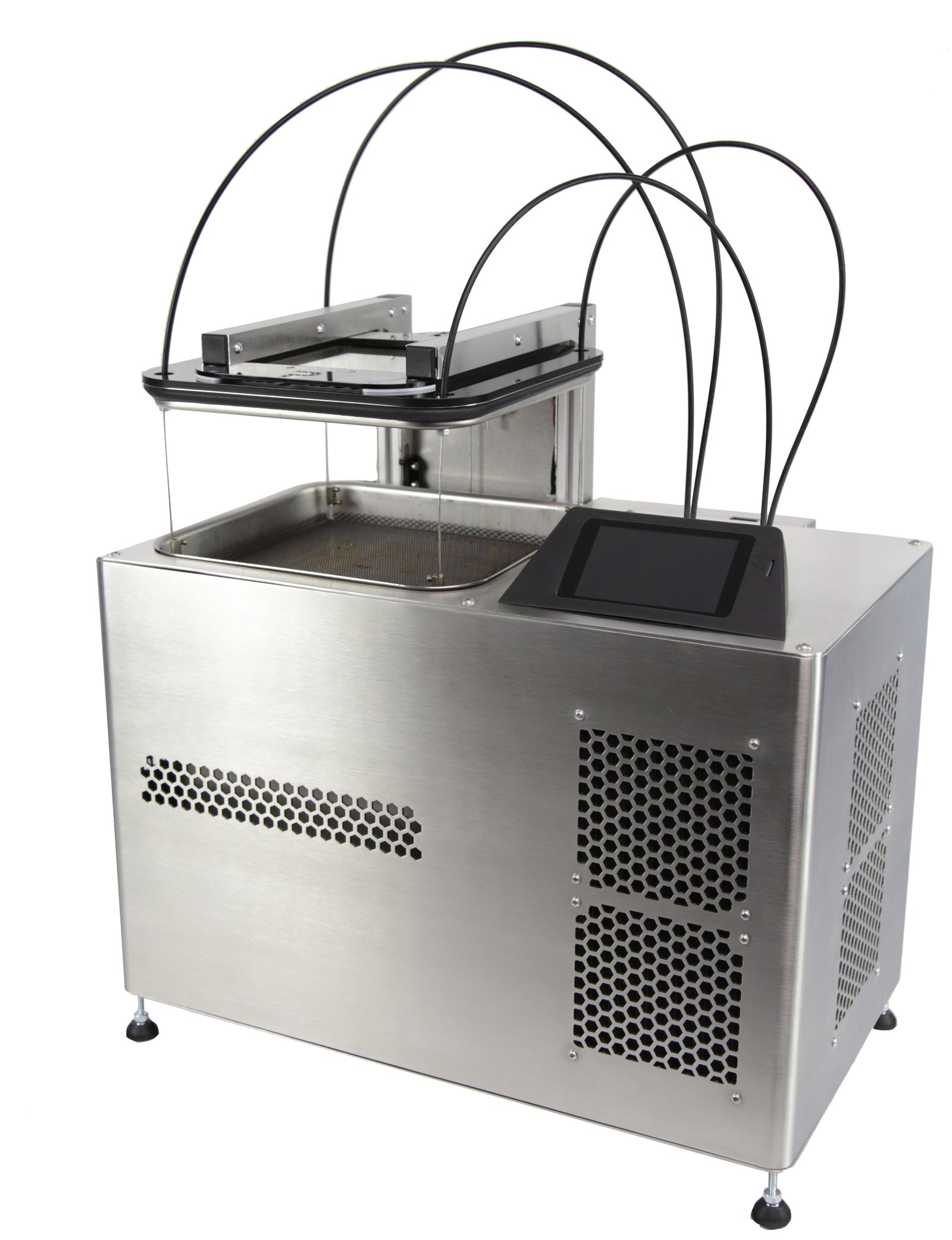

Vapor Phase One brings hobbyists and development engineers the most flexible PCB soldering process in the industry. Compared to infrared and convection welding, the vapor phase process excels at processing high thermal mass components. Large SMD capacitors, high-power inductors, and even metal-based PCBs are no challenge for the Vapor Phase One, which can also solder fine-pitch structures and thermal components without risk. Finally, its uniform temperature distribution minimizes PCB warping and bending, thereby reducing internal stress on components. Vapor Phase One relies on two integrated lifts to achieve the same results one would expect from industrial production. Perfect your soldering process and reduce the risk of cold solder joints, PCB tombstones and solder bridges.
