gEV1yYpKu

clock

Overview

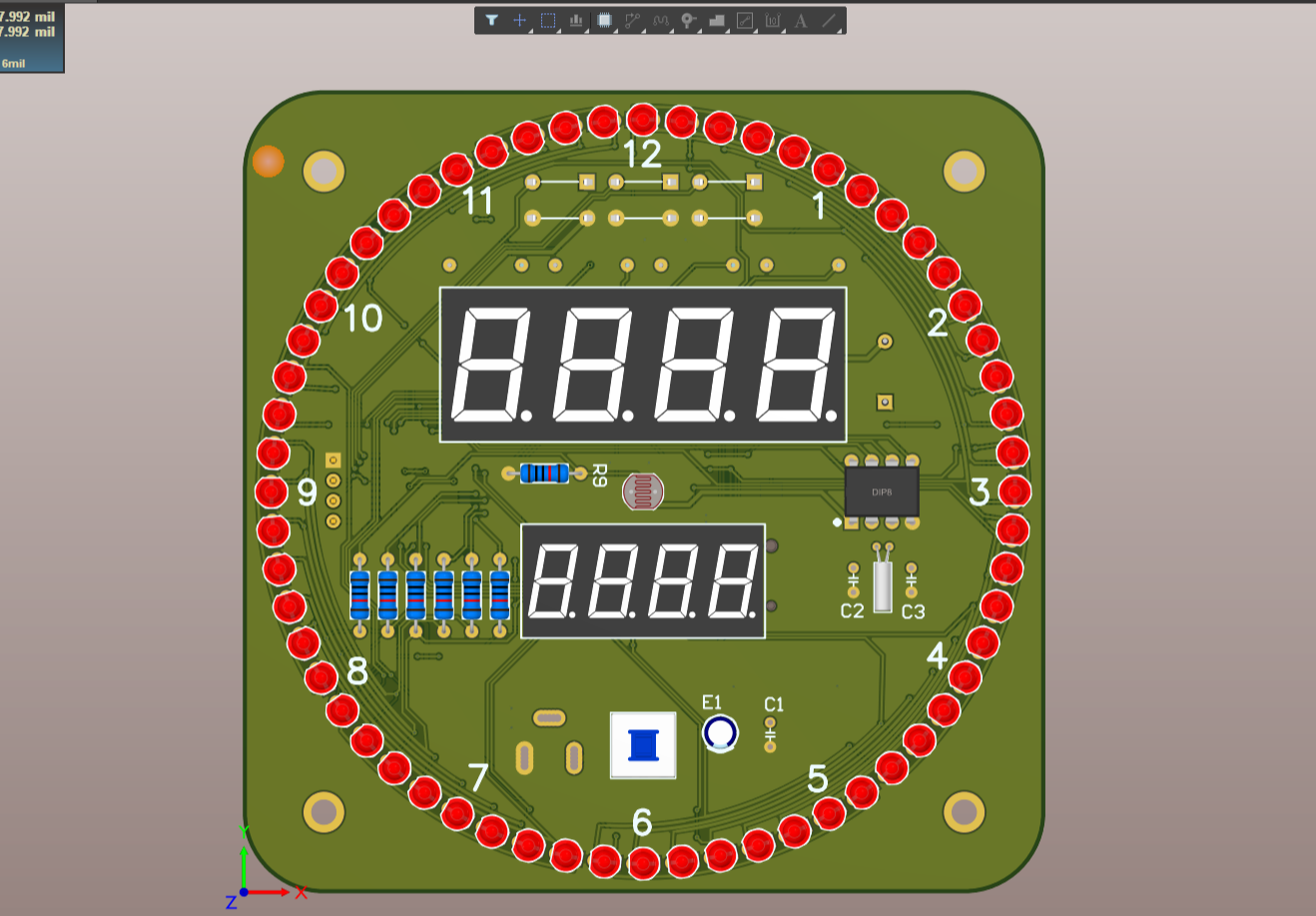

Front 3D picture! [Capture.PNG]

Back 3D picture

! [Capture 1.PNG]

Actual picture! [QQ picture 20220405195427.jpg]

Function introduction: 1. 60 lamp beads represent 60 seconds, and I wrote 5 animations Built in. 2. The photoresistor is located at the center of the front of the clock and senses external light to adjust its own brightness. 3. The time display and temperature display are separated, and the time display is displayed in a cycle every time it is turned on. 4. The temperature sensor is ds18b20. This temperature is still more accurate than some clocks sold online that use temperature-sensitive resistors as temperature sensors. 5. Comes with ds1302 and a battery, running time when power is off 6. Built-in 3 buttons for debugging 7. A buzzer, used as an alarm speaker 8. Microcontroller STC8A series, 44 pins
