Bingdundun four times happy version

Overview

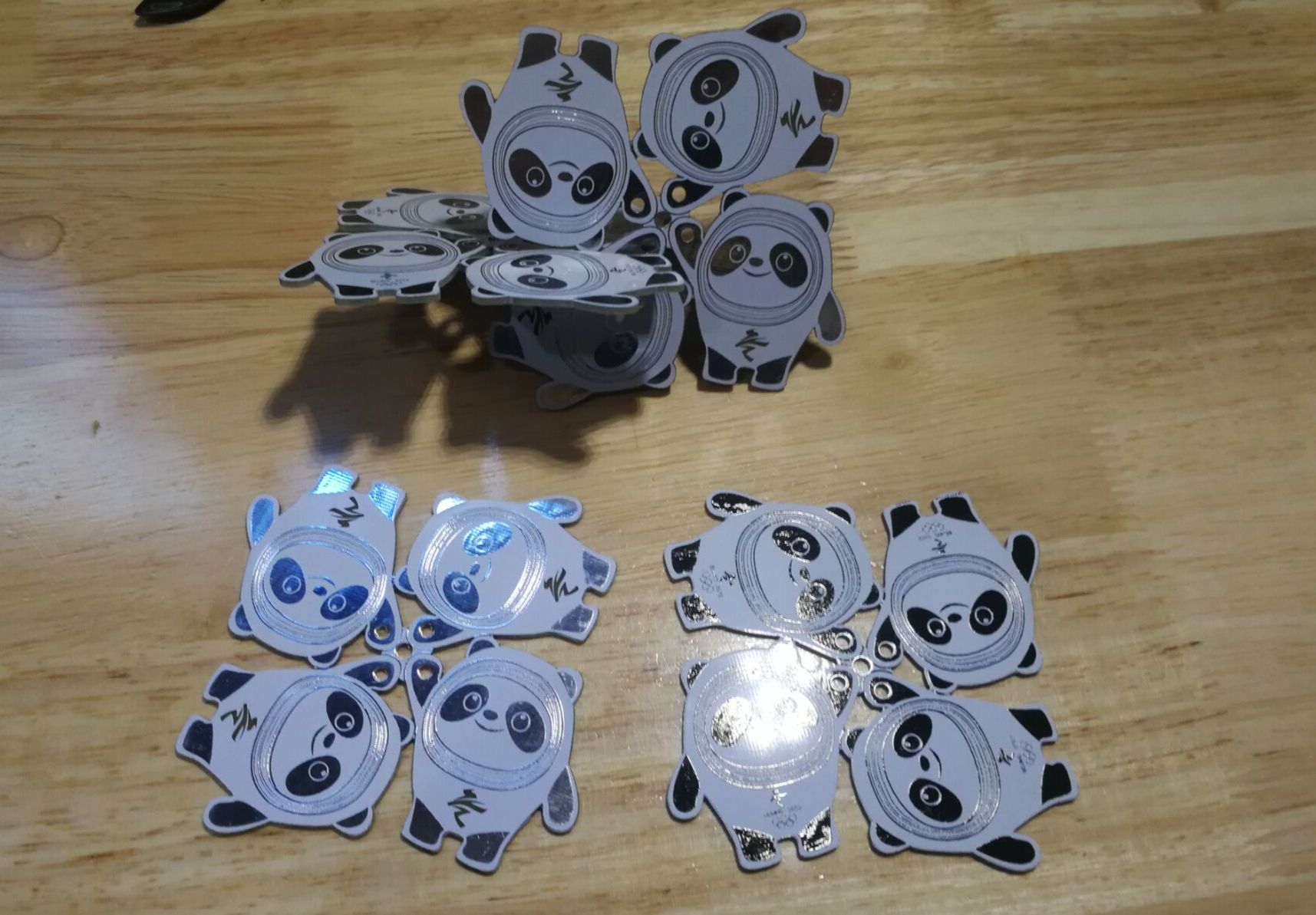

## Bingdundun 4x Happy Edition Once you play the version, you can get 20 (4 pieces * 5 pieces) icedunduns (circuit boards within 10*10cm can be printed for free) (but you have to saw them yourself when you return) , but you can buy 15 more for free every time, it’s so delicious) ## Finished product display picture 1: front and back: ! [Picture 1: front and back]

Picture 2: front: ! [Picture 2: front]

Picture 3: back: ! [Picture 3: Reverse]

Picture 4: Front: ! [Picture 4: Front]

Picture 5: Front after sawing: ! [Picture 5: Front after sawing]
