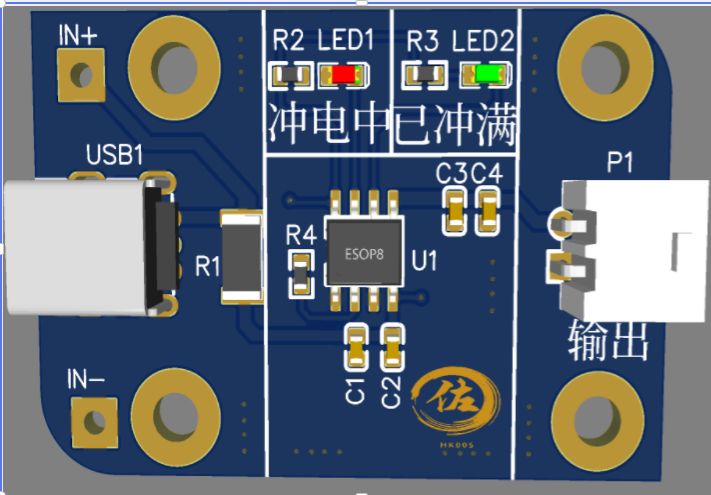

TP4056 lithium battery charging board

## TP4056 main parameters 1. Programmable charging current 1000mA. 2. Constant current/constant voltage operation, with thermal regulation function that maximizes charging rate without danger of overheating. 3. 4.2V precharge voltage with an accuracy of ±1%. 4. Dual output of charging status, no battery and fault status display. ## Mainly used in 1. Can be used for charging single-cell lithium batteries. 2. Portable devices. 3. Charger. 4. Bluetooth, GPS navigator, etc. ## Function description of each pin Pin number Pin name description 1 TEMP Battery temperature detection input 2 PROG Programmable constant current charging current setting terminal 3 GND Ground terminal 4 VCC power terminal 5 BAT battery terminal 6 STDBY battery charging completion indicator terminal 7 CHRG Battery charging indicator terminal 8 CE Chip enable input terminal ## Circuit description Main circuit
! [Main circuit.png]
