红水杯

CH340N USB-TTL downloader

Overview

Release Notes

1. Update the plate shape to make it easier to hold

2.Change the routing

3. Add teardrops

chip

CH340N is a USB bus adapter chip that implements USB to serial port and supports 5V power supply voltage and 3.3V power supply voltage. Full-speed USB device interface, compatible with USB V2.0. Hardware full-duplex serial port, built-in transceiver buffer, supports communication baud rate of 50bps~2Mbps. Built-in clock, no external crystal oscillator required.

Chip pin description

Instructions for use

1. There is no anti-backflow treatment, and the unified power supply of CH340 and MCU is required.

2. 3.3V and 5V have been led out, you can choose independently

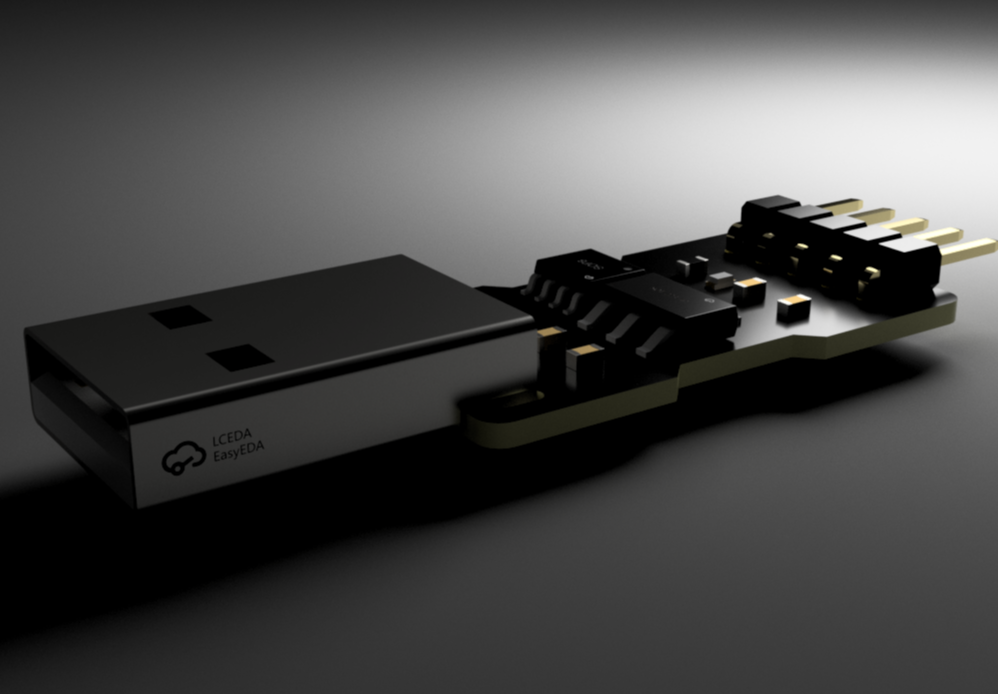

Rendering

Design Files
