sigma

Eye of God pendant V1.2_ESP32U

Overview

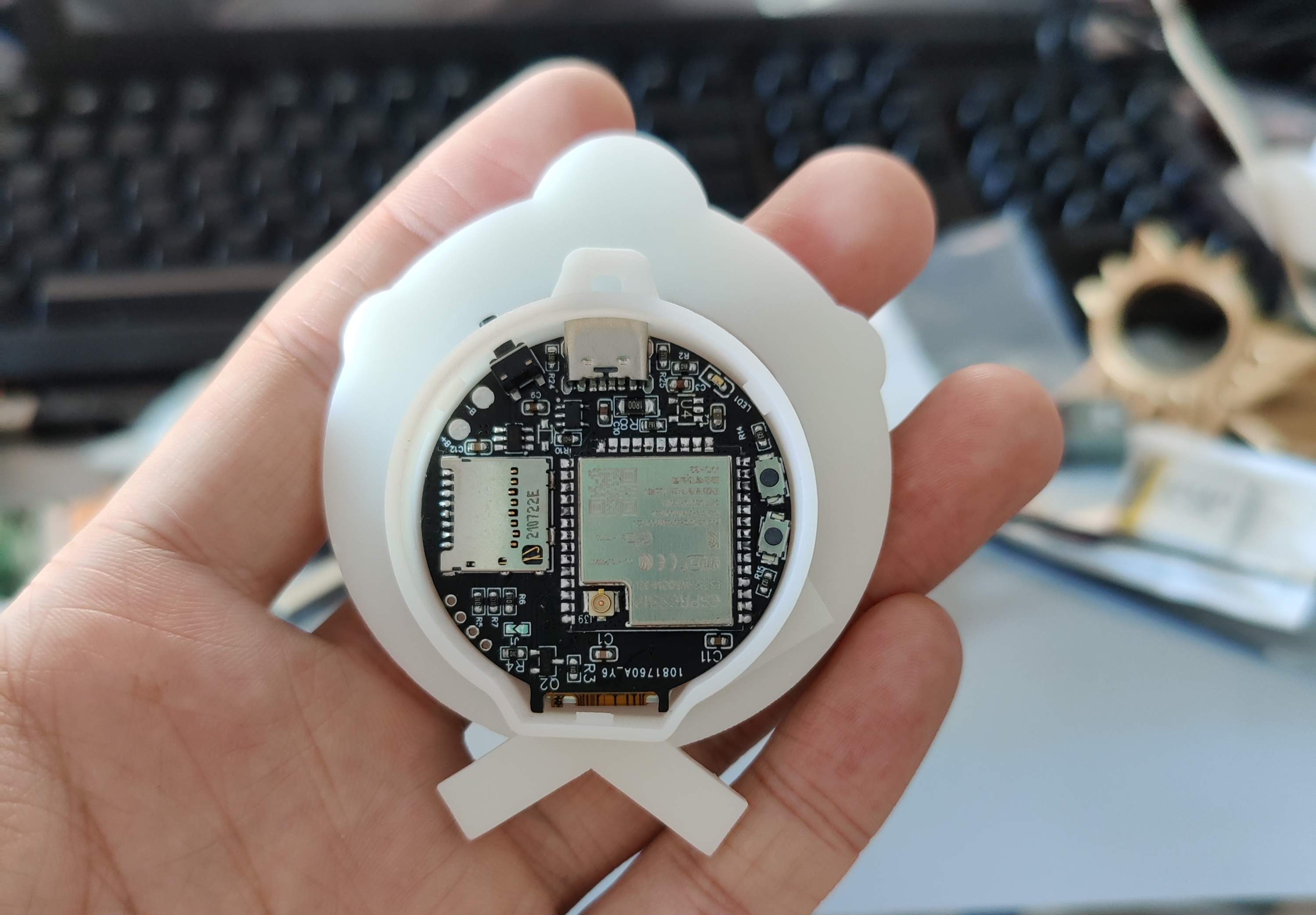

The original project was another project of mine. Since it used ESP32 Pico D4 and 0402 resistors and capacitors, it was difficult to solder, so I re-drawn a version that is easier to solder.

The main control is changed from ESP32 Pico D4 to ESP32-WROOM-32U module

Resistor and capacitance changed to 0603 package

The TF card slot is changed to 1040310811 (Lichuang Mall C number: C585350)

Shell thickness increased by 1mm

Please select 1.2mm for board thickness

The shell is 1mm thicker and has a buckle design, so it is not compatible with the previous version of the shell.

Tutorial on converting files: https://www.bilibili.com/read/cv15713513

After converting the format of the playback file, please rename it to yan.mjpeg

Shell printing tutorial: https://www.bilibili.com/read/cv16117622

Materials of the eyes of each god: https://pan.baidu.com/s/1A-ZfcfDUD0pB9I9s9xPY6A Extraction code: 2233
Path: Eye of God>Circle (Mond-Inazuma)>Eye of each god mjpeg file

For other files, please go to https://oshwhub.com/Myzhazha/esp32_pico-d4-video to view

Project Description:

This project is based on the Arduino IDE environment

The hardware and software parts of this project are open source based on the GPL3.0 open source license (can be modified, shared, and commercially available, but must be open source). Please follow the GPL3.0 open source license rules for secondary modifications.

GPL3.0 license introduction: http://www.gnu.org/licenses/quick-guide-gplv3.html

Since the shell is modified based on libc0607 , this shell is also open source under the CC-BY-NC-SA 3.0 open source license (can be freely modified and shared, but not for commercial use!)

CC-BY-NC-SA 3.0 open source license introduction: https://creativecommons.org/licenses/by-nc-sa/3.0/

I asked MiHoYo via email, but it cannot be counted as a fan work, so if you want to sell it, you can weigh it yourself.

The project uses the Arduino_GFX library to drive the screen https://github.com/moononournation/Arduino_GFX

The video playback code comes from https://github.com/moononournation/RGB565_video

The shell is based on the second modification of the Eye of God shell of libc0607 , address: https://github.com/libc0607/esp32-vision

The eye of god material comes from Kira , the master of UP station B. The material address is: https://b23.tv/m50Vcry ; then I used AE to add some particle motion effects. Please move the AE project file to https://oshwhub. com/Myzhazha/esp32_pico-d4- videoView

Burn:

Optional ArduinoIDE burning and esptool burning

ArduinoIDE burning notes:

ESP32 development board library version: 1.0.6

Arduino_GFX library version: 1.1.1

esptool burning:

Welding screen:

Since the screen back panel is made of metal, please use high-temperature tape to stick the cables for insulation after the screen is soldered.
