兰博

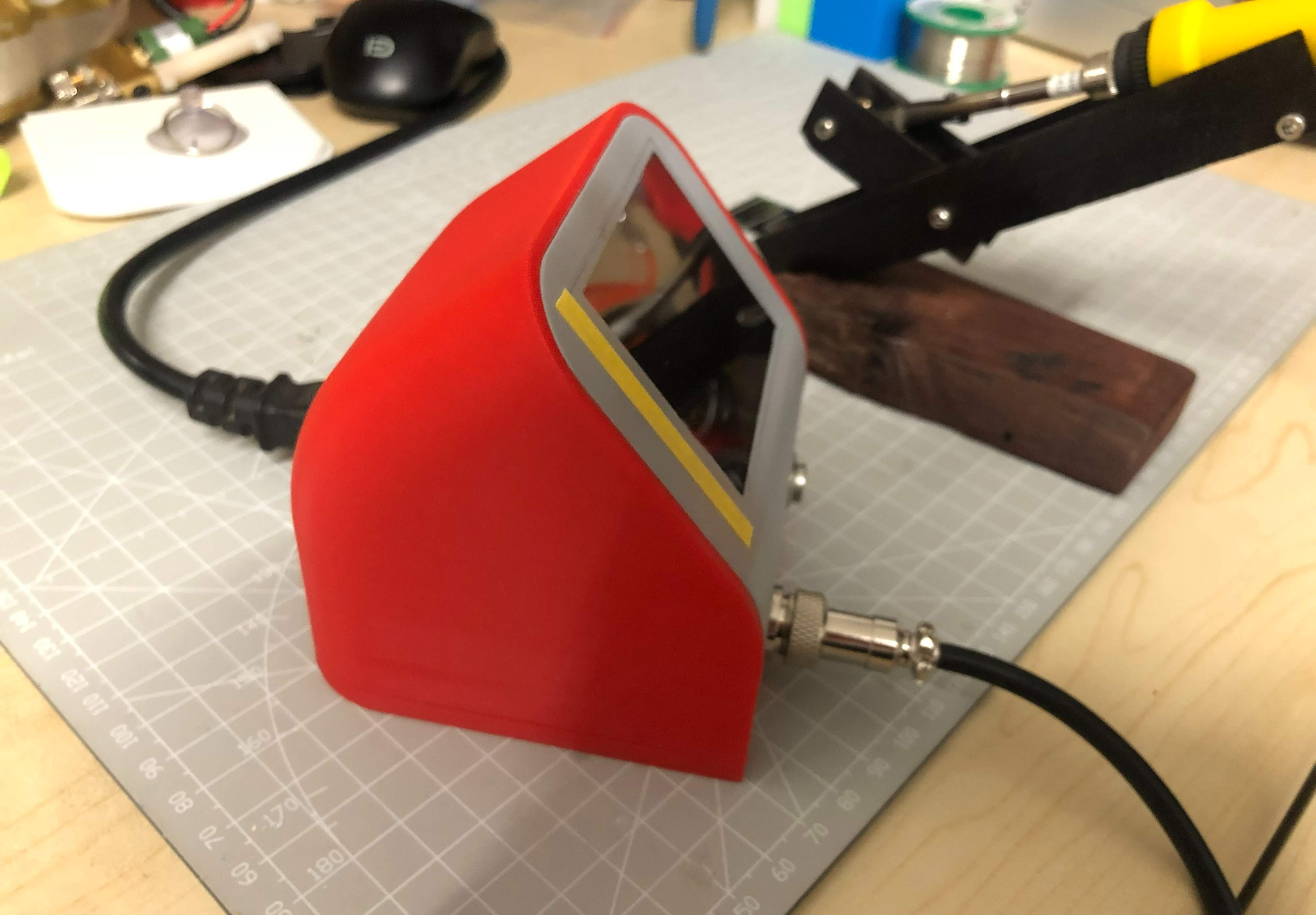

Touch screen T12

Overview

The shell is designed based on the open source touch screen T12 motherboard of the predecessor. For
the circuit part, please refer to the project of the predecessor: https://oshwhub.com/zhqsoft/shmictrl-28-t12

The motherboard is available on the official Taobao store.

advantage:

Cross-border temperature setting, 5 commonly used values can be set

Customizable interface

Legal Notice: No commercial use without permission.

Accessory parameters:

Power supply: Apple disassembled power supply

Power interface: plum blossom three-hole socket

DC interface: 5.5-2.1

Power switch: 12mm-lighted switch

Soldering iron handle interface: GX12
