【CW32】Brushless motor driver

Overview

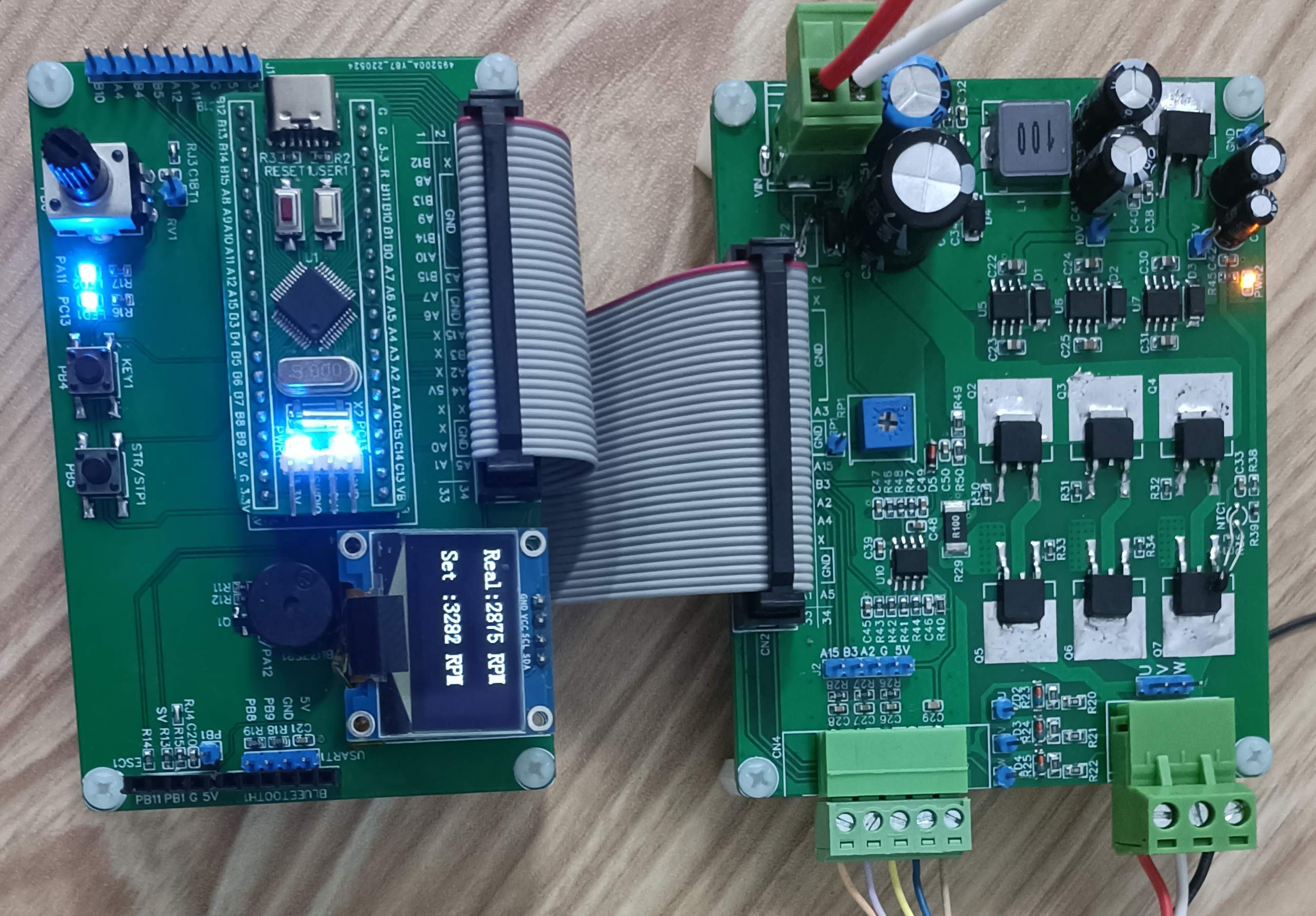

The brushless motor driver based on CW microprocessor consists of a minimum system, main control board and brushless motor driver board. This driver board is a brushless motor driver based on Xinyuan's CW32F030C8T6. The operating voltage is up to 36V (limited by the withstand voltage of tps5430. The gate driver uses EG3013. The SM4286T9RL used for mos, 100v, 14a, has an internal resistance of more than 100 mΩ.
