GP1287BI VFD display module (UNL-200AP)

#EEI TECHNOLOGY 05P-FLUORITE UNL-200AP Universal VFD display module

* **Has a wide voltage input range of 4.5-20V. **
* **Adaptive 3.3V/5V level (compatible with 51, STM32 and other mainstream microcontrollers). **
* **Improved power supply and filament driving scheme, no whistling and more efficient. **
* **The VFD screen has a built-in timing controller, which effectively avoids screen burn-in caused by improper use. **
* **1024 levels of brightness adjustable. **
* **The maximum power consumption is about 6W (full lighting, 1024 brightness, 5V input). **
* ** Built-in dynamic scanning logic and RAM, you only need to send instructions to the screen to complete the display. **
* **Reserve the main control board position on the PCB to effectively utilize the free space. **
* **The audio input interface is reserved to facilitate audio applications. **
* **Onboard photoresistor, with microcontroller, can achieve automatic brightness. **
* **TYPEC and DC005 power interface, suitable for various power supplies. **

## Copyright Statement

* **The copyright of this project belongs to EEI TECHNOLOGY electronic studio. **
* **This project is under the CC-BY-NC-SA license (i.e. Creative Commons-Attribution-Noncommercial-Share Alike) and unauthorized deductions (interception of parts of the original project or modifications based on the original project) are prohibited The new project that is born is called "deduction"). Even if it is authorized, the project must be shared in the same way before it can be deduced (the signature and source of the original author need to be marked). If you ignore the open source agreement and conduct commercial activities, this work will The office will hold them accountable and crack down severely! Please consciously abide by the open source agreement and jointly maintain the open source environment. **
* **This project is for DIY and learning purposes only. It is prohibited to use this project for any commercial activities (sales, dissemination, copying for profit), including but not limited to the above three points. **
* **In order to prevent some merchants from speculating on the screen, I have controlled the display screen of this project and sold it at a normal price. Please forgive me! **

## Precautions

* **The driver board has high voltage, please operate with caution. **
* ** U8G2 project (STM32CubeIDE) is provided. Due to my poor programming skills, I cannot develop other drivers. If necessary, please develop it yourself. **
* **U8G2 project pin description: PA5 SCK, PA7 SDA, PA1 CS, PA3 RESET**
* **[Data link](https://pan.baidu.com/s/1Wrj8wwwIpFY7kO-CtEar5g) Extraction code n6ix**

## VFD purchase link (optional purchase of screen alone or screen + driver board)

* **[Click here to purchase](https://item.taobao.com/item.htm?id=667269822288)**

# # The front of the board

![image.png]
## The back of the board

![image.png]

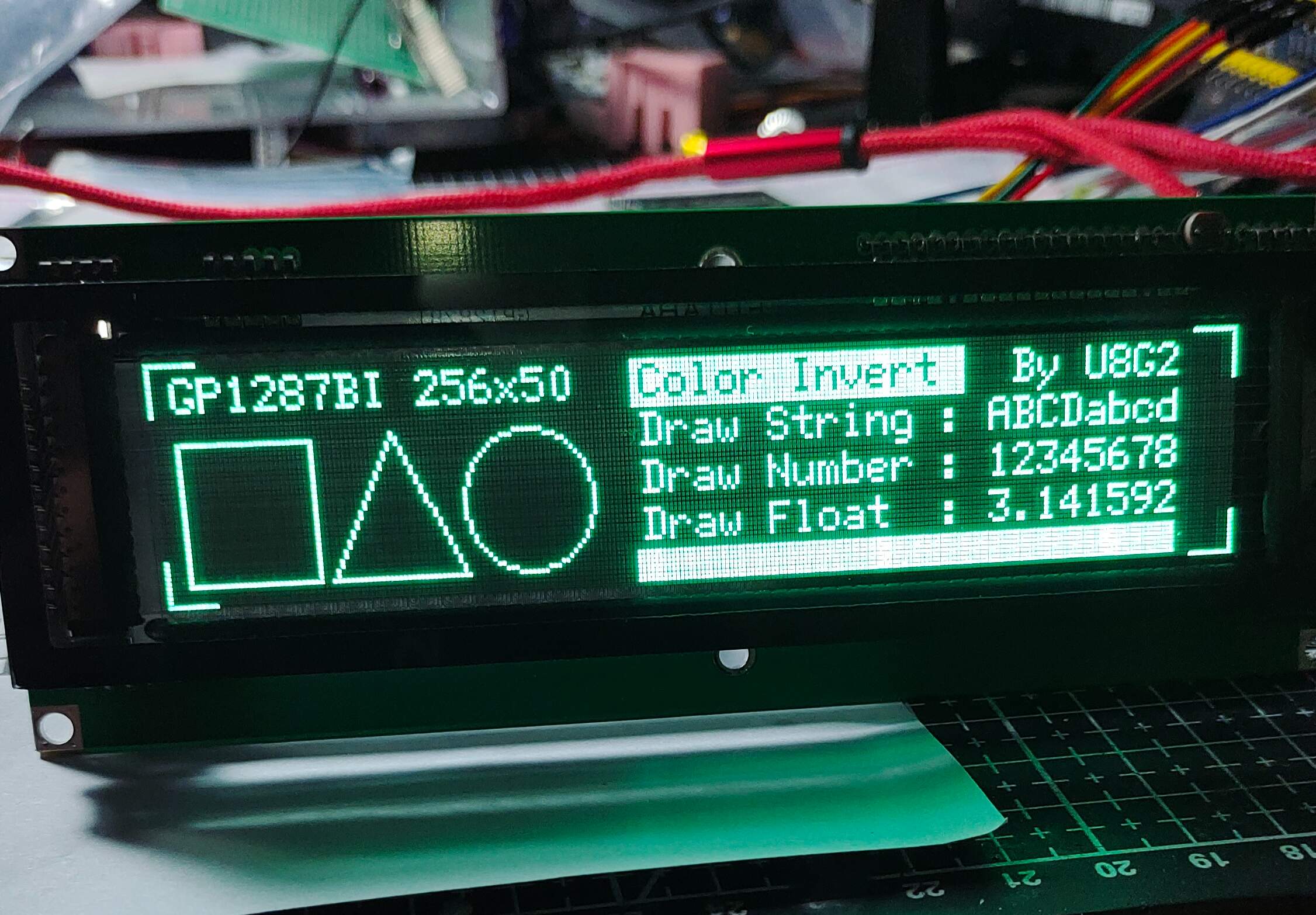

## Display the rendering
