Hezhouiot power in

Overview

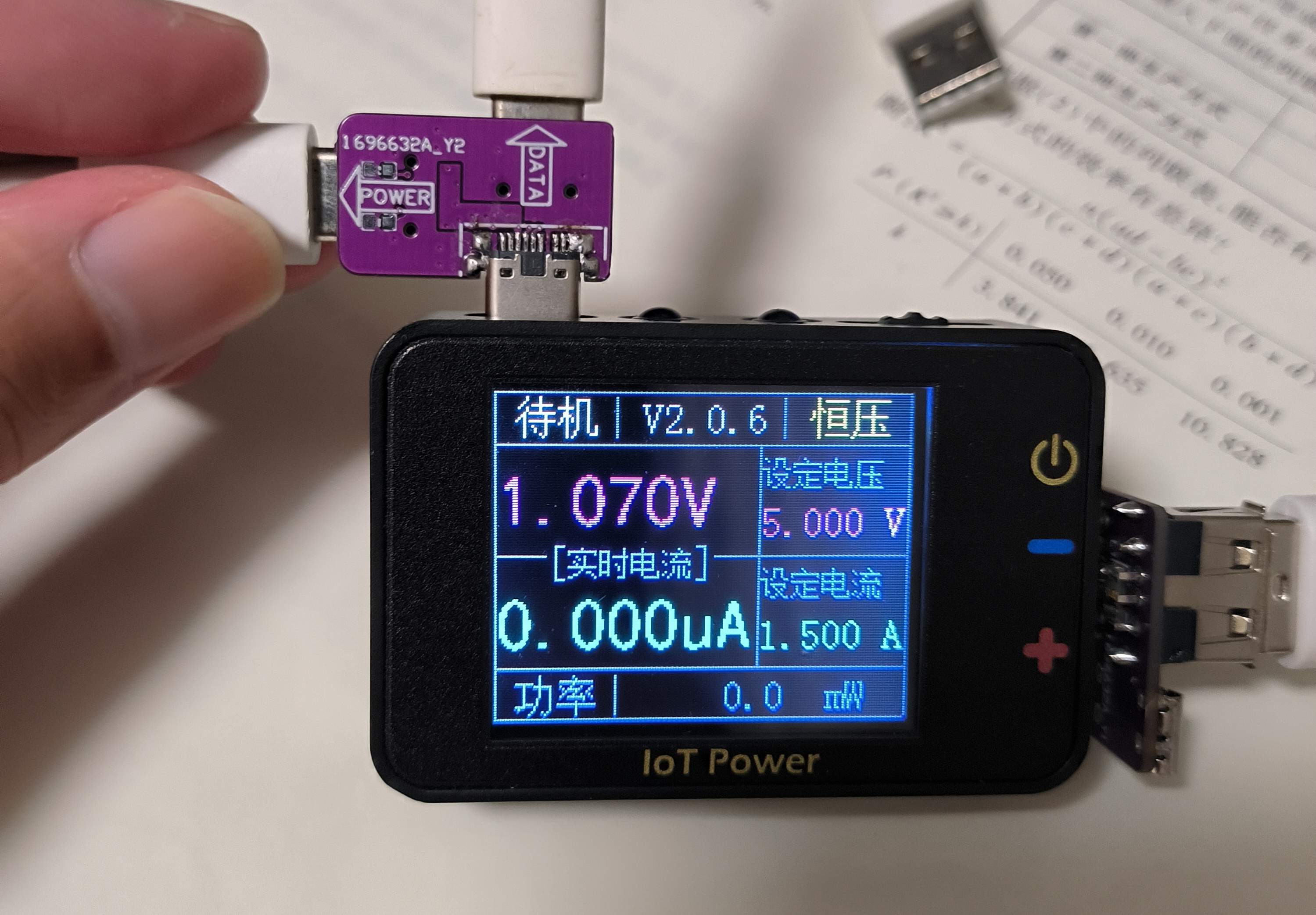

The iotpower input only has one type-c, which is not well compatible with the host computer and power input. The USB port current of some computers is small, so an expansion board is designed. Convenient for data transmission and power supply.

Typec male and female header links:
Male header:
https://item.taobao.com/item.htm?spm=a1z09.2.0.0.66712e8dJMIdWb&id=618848817156&_u=vpsc1sga250

Female header:
https://item.taobao.com/ item.htm?spm=a1z09.2.0.0.66712e8dJMIdWb&id=618848817156&_u=vpsc1sga250
