Beidou module test HT1612

Overview

As required by the course, the Beidou test board was produced. In the actual test, the signal can be found. In the antenna placement window, more than 5

four-layer boards of GPS and Beidou satellites can be found. The impedance matching line width is 32.61mil.

The Beidou module uses USB to ttl to connect to the serial port. The upper level The machine uses ustar, and it has been uploaded to the attachment.

When welding, the inductor package was not adjusted properly, and the pad appeared large, which does not affect the use. The battery package was drawn by myself. If you do not use the battery, you do not need to weld the BAT capacitor. The battery was originally designed for tire pressure battery welding. Use it, forget to design the charging circuit, and temporarily discard

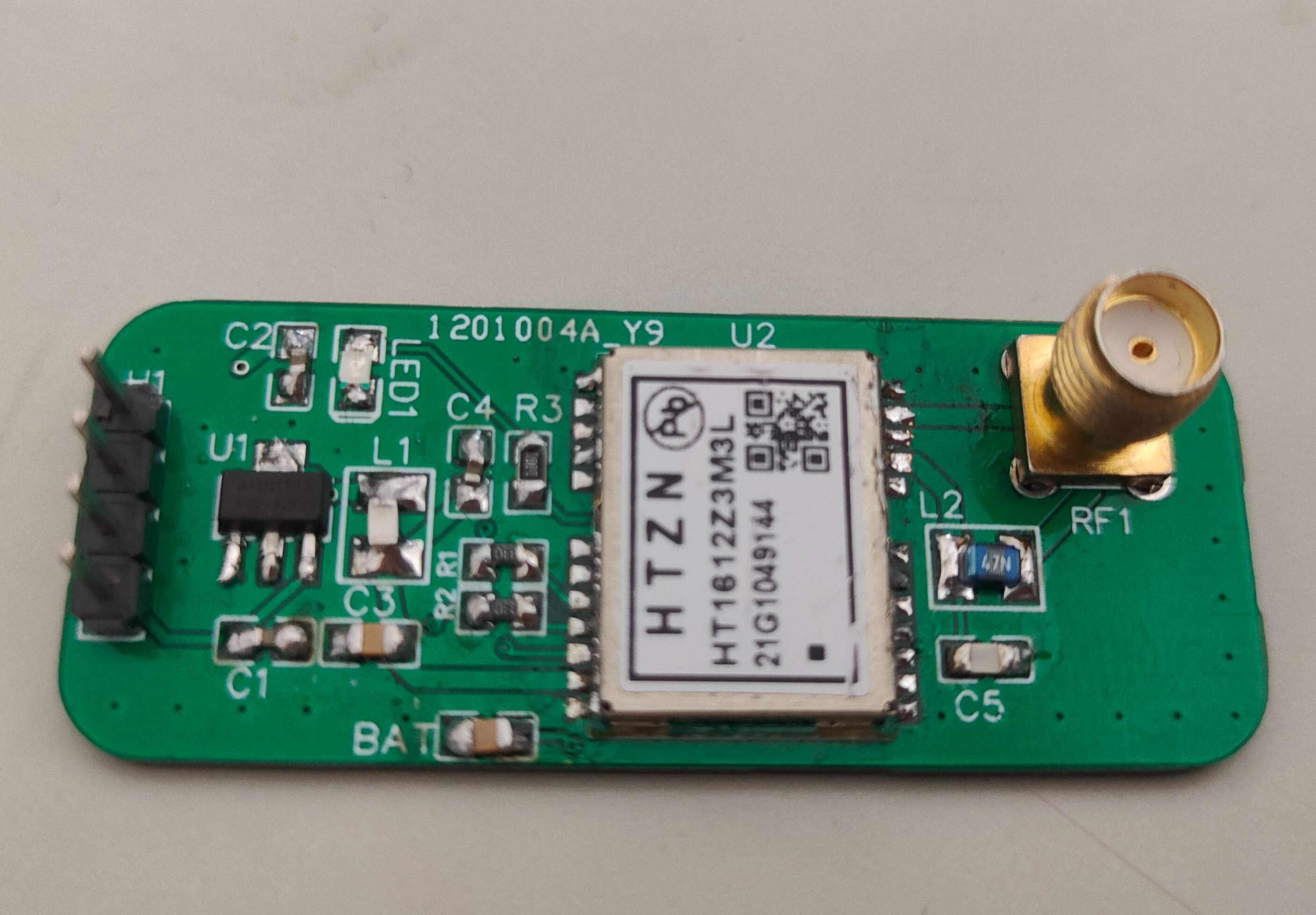

the physical picture (the pins on the left are GND, TXD, RXD, and 5V from top to bottom, and forget to mark them in the picture):

PCB:

Schematic:

uSTAR.7z

BOM download

PCB_PCB_beidou_2022-09-23.pdf

PCB_PCB_beidou_2022-09-23.json

PCB_beidou_2022-09-23.pcbdoc

Gerber_PCB_beidou_2022-09-23.zip

Schematic_Beidou module test HT1612_2022-09-23.pdf

SCH_Beidou module test HT1612_2022-09-23.json

Sheet_1_2022-09-23.schdoc

61689

(verified)BilClock

Introduction: A small TV made with a 0.96-inch OLED screen, which can display the time, number of fans of Station B and countdown.

This project is based on a small TV weather clock - you can optimize the PCB layout if you have the skills
. The firmware is from the original author. You can take a look at the original project.
Note: You can directly flash the original author's Bin file, and only the data folder in the uploaded code can display the network configuration web page.
The attachment contains bin and upload tools.
Features:
1. Use Type-C interface.
2. Use ME6211C33M5G-N LDO voltage regulator chip.
3. The charging chip uses TP4059.
4. The main control uses ESP-07S.
5. The display module uses 0.96-inch OLED.

PCB pictures:
Front
and back
finished product pictures:

FamilyMart:
Upload data distribution network interface

BilClock.zip

BOM download

PCB_PCB_BilClock_2022-09-23.pdf

PCB_PCB_BilClock_2022-09-23.json

PCB_BilClock_2022-09-23.pcbdoc

Gerber_PCB_BilClock_2022-09-23.zip

Schematic_(verified)BilClock_2022-09-23.pdf

SCH_(verified)BilClock_2022-09-23.json

PCB_BilClock_2022-09-23.schdoc
