FUSB251GEVB: Type-C™ CC and SBU Protection IC Evaluation Board

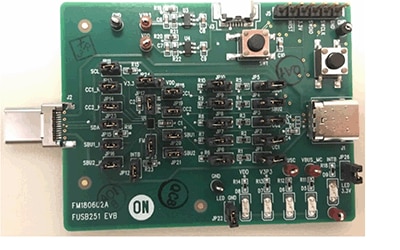

The FUSB251 evaluation board is designed to be inserted between a board that contains a Type-C controller (such as FUSB302B or FUSB307B) and a source of voltage for OVP testing. Test points and header switches are ready to test OVP and moisture detection functions on CC and SBU. LED indicators will show power status and Interrupt. If there isn't access to a Type-C voltage source, test points (GND and VDD) are available on the board for direct power supply connections.

The Type-C receptacle can accept a Type-C device such as Type-C charger or memory stick to demonstrate normal USB functionality.
Features and Applications


Features
This product is general usage and suitable for many different applications.
Dead battery mode provides default Rd presenting on CC1/2
24volt DC tolerant on CC and SBU
+/- 35volt Surge protection on CC and SBU
Over voltage protection on CC and SBU
I2C interface with Interrupt for event notification.
Moisture detection on CC and SBU pins.
On-chip IEC ESD protection with external capacitor on CAP pin
CC Ron 0.3ohm Typical
SBU Ron 3ohm Typical
50Mhz Bandwidth on SBU switch
15 ball WLCSP
