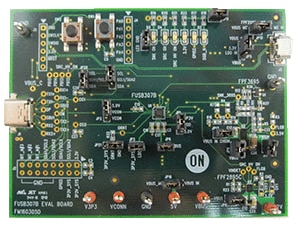

FUSB307BGEVB: FUSB307B Evaluation Board

FUSB307BGEVB: Eval board for FUSB307B

Overview

The FUSB307B targets system designers looking to implement up
to four USB Type-C port controllers (TCPC) with USB-PD
capabilities.
This solution provides integrated Type-C Rev 1.3 detection
circuitry enabling manual attach/detach detection. Time critical Power
Delivery functionality is handled autonomously, offloading the
Processor or Type-C Port Manager (TCPM).
The FUSB307B complies with the USB-PD Interface
Specification.
Features and Applications

Features
USB-PD Interface Spec Rev 1.0 Ver. 1.2
Compatible
USB Type−C Rev 1.3 Compatible
Extended Data Messages (Chunked)
Fast Role Swap
Sink Transmit
USB−PD Rev 3.0 Ver. 1.1 Compatible
Dual−Role Functionality
♦ Manual Type−C Detection
♦ Automatic DRP Toggling
USB−PD Interface Specification Support
♦ Automatic GoodCRC Packet Response
♦ Automatic Retries of Sending Packet
♦ All SOP* Types Supported
VBUS Source and Sink Control
Integrated 3 W Capable VCONN to CCx
Switch
10-bit VBUS ADC
Programmable GPIOs
4 Selectable I2C Addresses
Dead Battery Operation
♦ Powered from VBUS
♦ LDO Output provides power to TCPM
Packaging
♦ 16-pin WQFN (3.0 × 3.0 mm)

Design Files
