NCN4555GEVB: Sim card interface evaluation board

NCN4555GEVB: Sim Card Interface Evaluation Board

Overview

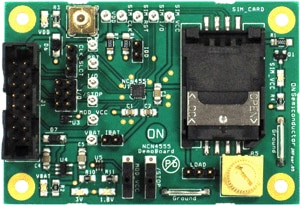

The NCN4555 Evaluation Board has been designed for a quick evaluation of the NCN4555 SIM card interface device. Among its main characteristics, this evaluation board has been constructed to be easily interfaced with customer systems through an HE10 16-pin connector and an embedded SIM card socket. It can also be evaluated as a standalone evaluation board. The test procedure considers the last mode of evaluation through two different portions, primarily the linear dc/dc converter (LDO) and the level shifter function. This evaluation board can be used to evaluate the device performance and allows the user to place the NCN4555 device in a real application environment. When the intention is to evaluate the device considering the specifications given in the datasheet it is important to take into account the supplementary circuitry which may introduce additional power consumption.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
