NCP10970AGEVB: Dual Output PSU for High Voltage Input Evaluation Board

NCP10970AGEVB: Dual Output PSU for HV Input Evaluation Board

Overview

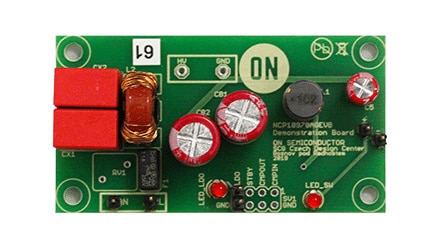

The NCP10970AGEVB evaluation board is a non−isolated buck topology converter which provides adjustable output voltage up to 16 V and fixed linear output voltage 3.3 V. Input voltage range is from ~30 Vrms up to 440 Vrms. The board is also ready for DC input voltage up to 620 V.
