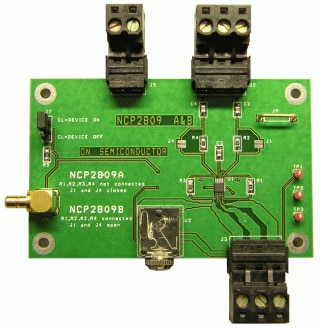

NCP2809BGEVB: Stereo Audio Amplifier with Adjustable External Gain Evaluation Board

NCP2809BGEVB: Stereo Audio Amplifier w/ Adjustable External Gain Evaluation Board

Overview

The NCP2809B is a cost-effective fixed gain stereo audio power amplifier capable of delivering 135 mW of continuous average power per channel into 16 ohm loads. This device has been specifically designed to provide high quality output power from low supply voltage, requiring very few external components. The device incorporates a proprietary virtual ground circuit which allows the speakers to be directly connected to the amplifier without the need for bulky DC blocking capacitors.Since NCP2809 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. The NCP2809B has adjustable gain by means of external resistors.
Features and Applications

Features
135 mW to a 16 ohm Load from a 5.0 V Power Supply
Excellent PSRR (85 dB Typical): Direct Connection to the Battery
Pop and Click Noise Protection Circuit
Ultra Low Current Shutdown Mode
2.2 V-5.5 V Operation
Outstanding Total Harmonic Distortion + Noise (THD+N):
Thermal Overload Protection Circuitry
