NCP3230GEVB: High Current Synchronous Buck Converter

NCP3230GEVB: High Current Sync Buck Converter

Overview

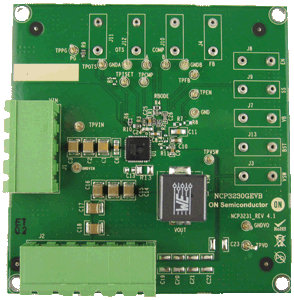

The NCP3230GEVB Evaluation Board is a high current, high efficiency, voltage−feed−forward voltage−mode synchronous buck converter which operates from 4.5 V to 18 V input and generates output voltages down to 0.6 V at up to 30 A load.FeaturesWide Input Voltage Range from 4.5 V to 18 V
0.6 V Internal Reference Voltage
500 kHz Switching Frequency
External Programmable Soft−start
Lossless Low−side FET Current Sensing
Output Over−voltage Protection and Under−voltage Protection
System Over−temperature Protection using a Thermistor or Sensor
Hiccup Mode Operation for All Faults
Pre−bias Start−up
Adjustable Output Voltage
Power Good Output
Internal Over−temperature Protection
