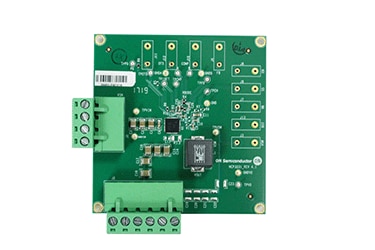

NCP3231GEVB: NCP3231GEVB - High Current Synchronous Buck Converter

Overview

The NCP3231 is a high current, high efficiency, voltage−feed−
forward voltage−mode synchronous buck converter which operates
from 4.5 V to 18 V input and generates output voltages down to 0.6 V
at up to 25 A DC load or 30 A instantaneous load . It has a 500kHz switching frequency while having a good thermal performance. It also has hiccup mode operation for all faults.
