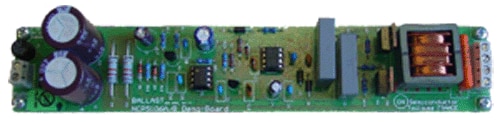

NCP5106BA36WGEVB: 36 W ballast evaluation board

NCP5106BA36WGEVB: 36 W Ballast Evaluation Board

Overview

The NCP5106 is a High Voltage gate Driver IC providing two outputs for direct drive of 2 N-channel power MOSFETs or IGBTs arranged in a half-bridge configuration version B or any other high-side + low-side configuration version A. It uses the bootstrap technique to insure a proper drive of the High-side power switch. The driver works with 2 independent inputs.
