NCV7424V1GEVB: NCV7424 quad-channel LIN transceiver evaluation board

NCV7424V1GEVB: NCV7424 Quad LIN Transceiver Evaluation Board

Overview

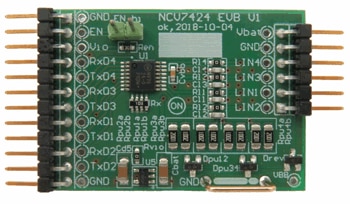

The NCV7424V1GEVB is designed to quickly evaluate the NCV7424 four channel LIN transceiver. The board is intended to provide quick and convenient means for evaluation of LIN transceiver, including master node termination on-board 5 V LDO. The design incorporates the lowest bill of material and small board size.
