NVG800A75L4DSC-EVK: VE-Trac Dual EZ Kit

Overview

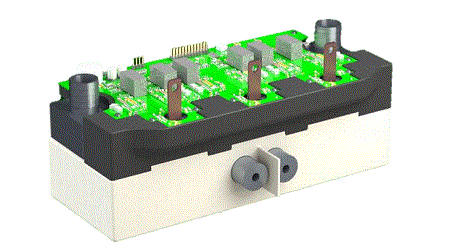

The VE-TracTM Dual Evaluation Kit consists of three VE-Trac Dual power modules (NVG800A75L4DSB) mounted on dual side cooling heatsink, with a 6-ch Gate driver board, DC Link capacitor and external hall-effect current sense feedback for motor control. The kit does not include a PWM controller. The evaluation kit allows the customers to evaluate VE-Trac Dual power module performance in the early stage of inverter development. The kit can be used as a double pulse tester to measure key switching parameters or used as a 3-ph inverter for motor control.
Features and Applications

Features
Inverter evaluation Hardware kit for EV/HEV Traction Inverter applications (up to 150kW)
VE-Trac Dual NVG800A75L4DSB with 800A, 750V Field stop 4 IGBT/Diode chipset.
Implementation of Faster and simpler OCP enabled by On-Chip Current Sensing feature in the power modules.
Implementation of faster and closer to true Tvj OTP with integrated to On-Chip Temperature Sensing feature in the power modules.
Custom designed dual side cooler offers low pressure drop with excellent thermal performance.
Custom Film DC Link capacitor rated up to 500VDC, 500 uF.

Design Files

VE-Trac™ Dual EZ Kit Quickstart Guide
