SEC-25KW-SIC-PIM-GEVK: Full Silicon Carbide 25kW DC EV Charger Platform

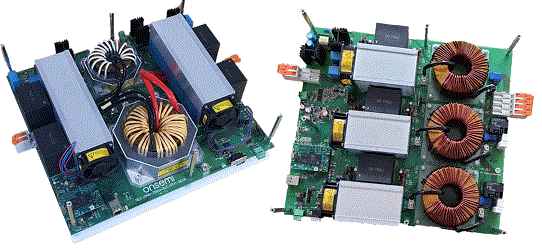

SEC-25KW-SIC-PIM-GEVK is a 25kW fast DC electric vehicle charger reference design kit based on SiC power integrated modules. This full SiC solution consists of PFC and DC-DC stages, with multiple 1200V, 10mohm half-bridge SiC modules NXH010P120MNF1, ultra-low RDS(ON) and minimized parasitic inductance can significantly reduce conduction and switching losses. Relying on a powerful universal controller board (UCB) and Zynq®-7000 SoC FPGA and ARM®-based processor, the system can provide a maximum of 25kW of power at an output voltage of 200V-1000V, with a full-time efficiency of 96%, and can charge 400V or 800V electric vehicle batteries. The SEC-25KW-SIC-PIM-GEVK also highlights the galvanically isolated high current driver NCD57000, auxiliary power solution SECO-HVDCDC1362-40W-GEVB for providing stable voltage rails for low voltage components, integrated protection features such as surge control, overvoltage protection, and multiple communication interfaces. Read the entire reference design series "Developing a 25kW SiC-based Fast DC Charger Part 1-8" below to learn the detailed considerations and challenges encountered by Onsemi during the design process. FeaturesVin=400Vac (EU)/480Vac (US), Vout=200Vdc-1000VdcMaximum output power=25kW, efficiency>96%Three-phase PFC and DAB for bidirectional power conversion from 400V/800V batteriesVarious protection functions and communication interfacesCompliant with EN55011 Class A and IEC 61851FPGA/ARM compatible with Universal Controller Board (UCB)NXH010P120MNF1 - SiC module, half-bridge, 1200V, 10 mohm SiC M1 MOSFETNCD57000 - Isolated high current and high efficiency gate driver applicationsHigh efficiency electric vehicle chargerThree-phase AC-DC conversionSEC-25KW-SIC-PIM-GEVK is a reference design kit for 25kW fast DC EV charger based on SiC power integrated module. This full SiC solution consists of PFC and DC-DC stages featuring multiple 1200V, 10 mohm half-bridge SiC modules NXH010P120MNF1, the ultralow RDS(ON) and minimized parasitic inductance can significantly reduce conduction loss and switching loss. Relying on the powerful Universal Controller Board (UCB) with Zynq®-7000 SoC FPGA and ARM®-based processor the system can deliver maximum 25kW over 200V-1000V output voltage with 96% all-time efficiency to charge 400V or 800V EV batteries. SEC-25KW-SIC-PIM-GEVK also highlights the galvanic-isolated high-current driver NCD57000, auxiliary power solution SECO-HVDCDC1362-40W-GEVB to power stable voltage rails to low-voltage components, integrated protections like inrush control, over voltage protection and multiple interfaces for communication. Read the whole reference design series below Developing A 25-kW SiC-Based Fast DC Charger Part 1- 8 to learn detailed considerations and challenges onsemi has met during the design process.Features and ApplicationsFeatures Vin=400Vac (EU)/480Vac (US), Vout=200Vdc-1000Vdc Max output power=25kW, efficiency>96% Three-Phase PFC and DAB enables bidirectional power conversion for 400V/800V battery Multiple protecting functions and communication interfaces Following EN55011 Class A & IEC 61851 Compatible with the Universal Controller Board (UCB) FPGA/ARM NXH010P120MNF1 - SiC Module, half bridge, 1200V, 10 mohm SiC M1 MOSFET NCD57000 - Isolated high current and high efficiency gate driver Applications High-efficiency EV charger Three-Phase AC-DC conversion
