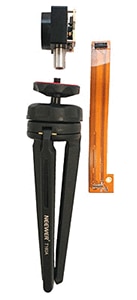

XCUBE-NOIX1SE012KBL-GEVK: X-Cube XGS 12000 Color Module Kit

Overview

The X-Cube XGS 12000 Color Module Kit provides a 29 x 29 mm2 footprint 12 lane camera reference design for XGS image sensors from 16 Mp and lower in resolution. An FPGA board converts XGS 12000 color output to MIPI, and the system is compatible with the IAS module for Demo3 and DevWare support. Design files are available to simplify image sensor adoption and new camera design.

Design Files

X-Cube Imaging System X-Cube Machine Vision Reference Module Developer Guide
