100w stereo amplifier board DIY TDA2030 IC with transistor

100 Watts Stereo Amplifier Board DIY TDA2030 IC with Transistors

Overview

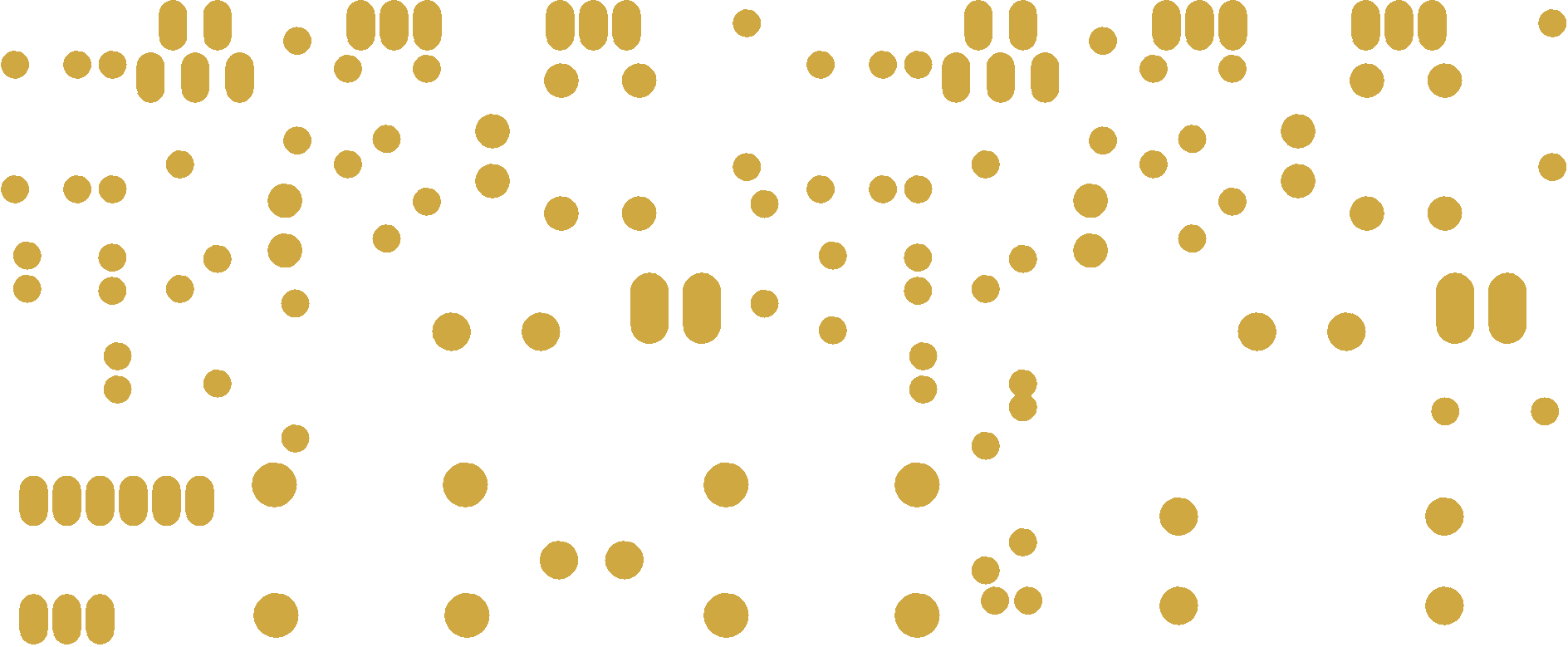

This is a 100w stereo amplifier board. This project can easily play two 50w speakers. I used in this project TIP41C and TIP42C transistors with TDA2030 IC and 5 Amp 0-30 Transformer Project Components · 6 resistors 56K · 2 resistors 1Ohm1/2W · 4 resistors 1.5_2W · 2 resistors 3.3K · 2 33K resistors · 1 10K resistor · 4 capacitors 2200UF50V · 6 capacitors 0.22uf=224 · 2 capacitors 10uf · 2 capacitors 2.2uf · 2 22uf capacitors · 4 diodes 1N4007 · 4 diodes 6A4 · 2 TDA2030 chips · 2 transistors TIP41C · 2 transistors TIP42C · 6 jumpers · LED · 1 connector 6pin_2.54mm · 1 connector 3pin_2.54mm · 1 connector 2pin_5mm Screw · Connector 2pin_3.96mm
