PicoTouch

Overview

基于ESP32-PICO-D4和1.69寸电容式触摸屏的终端设备
两块板子用FPC软排线连接起来的，代码实在是懒得写，出个pio基础工程，其他的靠自己吧。
开源工程：https://github.com/AaronChuzb/PicoTouch

复刻过程中有啥问题请一定要询问或者讨论，不然出问题不好解决。

AXP173去TB佳芯微买

1.69寸触摸屏
链接：https://item.taobao.com/item.htm?spm=a1z09.2.0.0.77542e8dK7tgw5&id=662619384744&_u=72ce6ade189c

柱子

柱子链接：https://item.taobao.com/item.htm?spm=a1z09.2.0.0.77542e8dK7tgw5&id=655855111684&_u=72ce6aded15e

fpc软排线

软排线链接：https://item.taobao.com/item.htm?spm=a1z09.2.0.0.77542e8dK7tgw5&id=555563074622&_u=72ce6adeed91

M2螺丝

螺丝链接：https://detail.tmall.com/item.htm?_u=72ce6adee80a&id=675935672539&spm=a1z09.2.0.0.77542e8dK7tgw5&skuId=4857759084734

电池

电池链接：https://item.taobao.com/item.htm?spm=a1z09.2.0.0.77542e8dK7tgw5&id=589740856789&_u=72ce6ade97d2
电池叫店家加SH1.0的座子，方向不要反了，请直接甩图给商家！！！

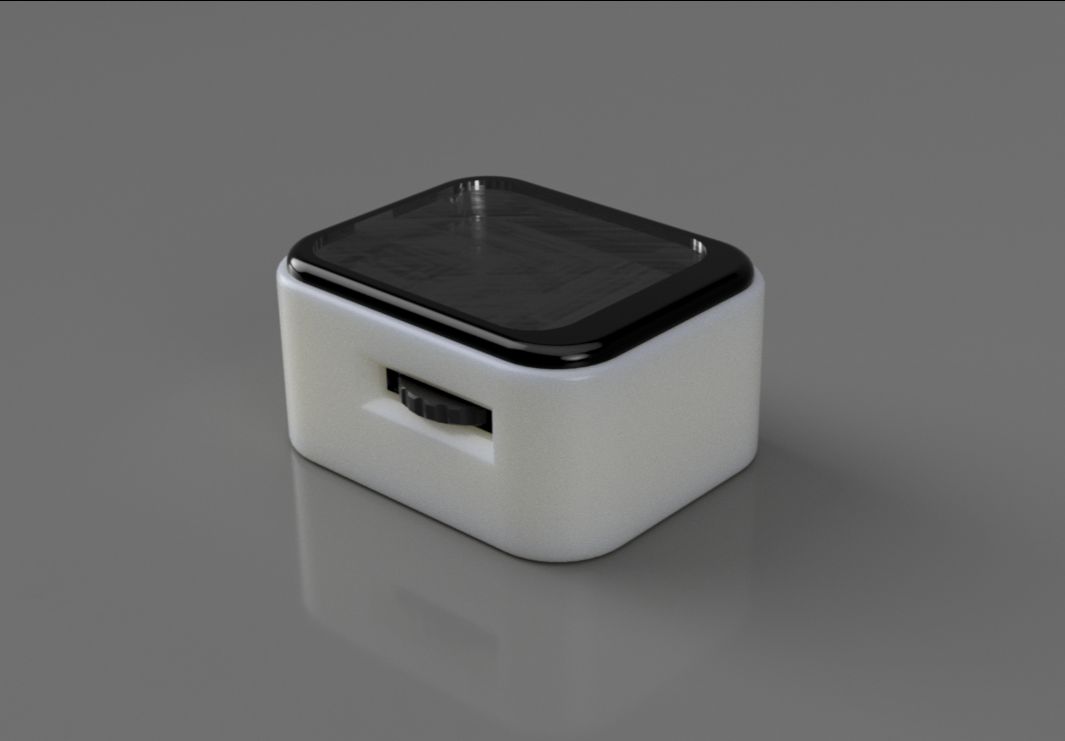

成品如图

项目的电源验证可打可不打，打了可以多焊一块电源板子，做其他项目可以用来当锂电池解决方案。

再bb一句，核心板的核心不限于PICO-D4，可任意搭配MCU
